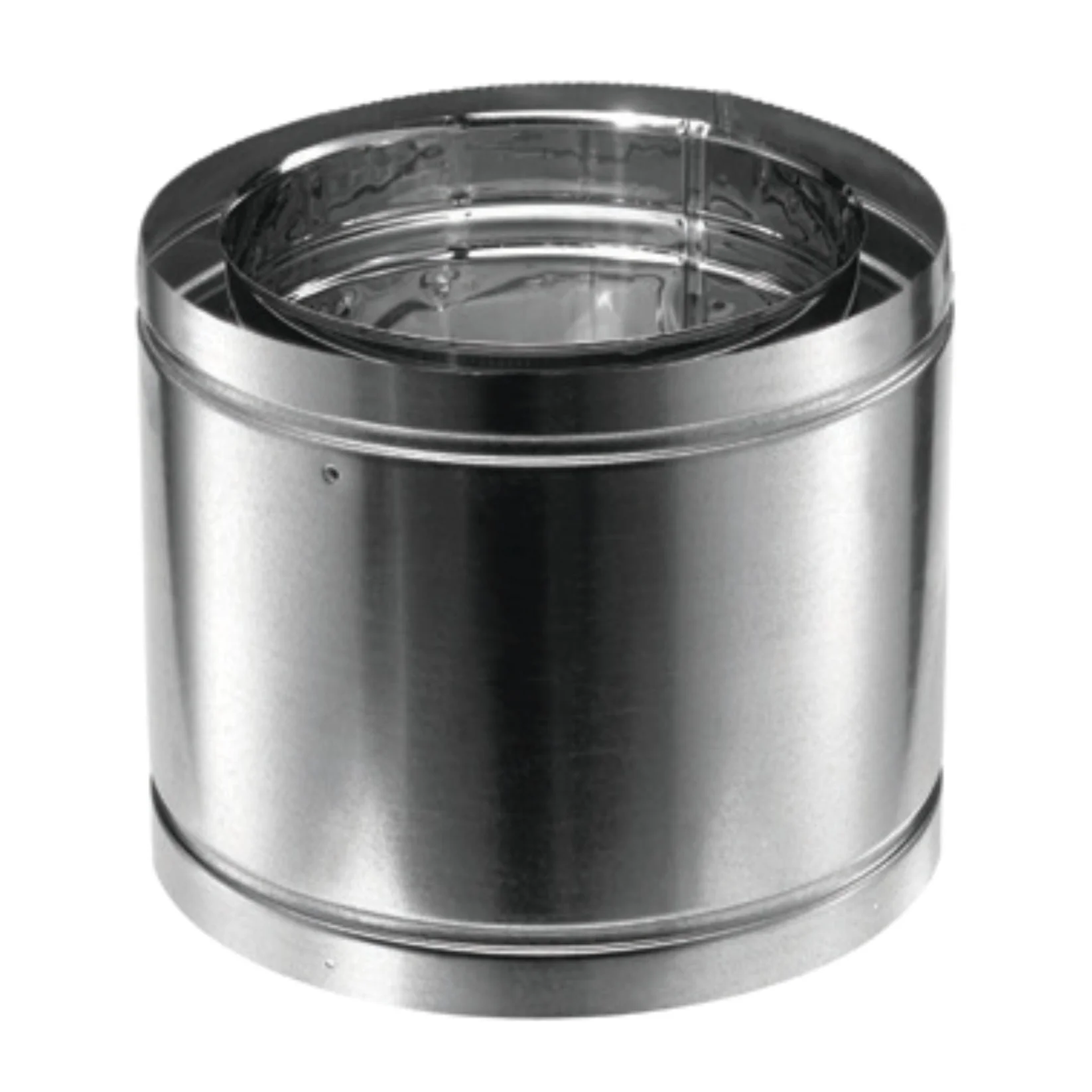

Duravent Durachimney II 8" Inner Diameter Galvanized Chimney Pipe

Need a custom build chimney pipes setup that fits just right? We can custom-build your chimney pipe setup and help you plan and complete the entire build with confidence. If you have any questions, please contact us 541.678.0243

DuraChimney II pipe is available in 12“, 18”, 36”, and 48“ lengths. To calculate the installed length of DuraChimney II pipe, subtract 1” from each length of chimney pipe.

All Fuel Chimney PDF

Product Note: Allow a 2" clearance to combustibles when installing a DuraTech Chimney.

DuraChimney® II is an exceptional factory-built alternative to pre-fabricated masonry chimneys. DuraChimney® II is a unitized, lightweight design which eliminates the need for field assembly of pipe sections, allowing for faster installation.

APPLICATION:
DuraChimney II is a double-wall, air-cooled chimney system for use with masonry fireplaces which burn wood, oil, coal, or gas.

DETAILS:

• Wall Construction: Double Wall
• Insulation Type: Air
• Bend Angle Degree: NA
• Connection Type: Overlap with Screws
• Listing Agency Standards: UL103HT,ULC604,LS3000

FEATURES:

• Inner Diameter:  8"
• Material:  Stainless Steel Inner/Galvanized Steel Outer
• Color/Finish:  Silver
• Certification:  UL103 and ULC-S604

• Vent Type:  Wood Burning
• Pipe Wall Type:  Double Wall

MATERIAL AND CONSTRUCTION
.016″ 430 stainless steel inner wall and .021″ galvanized steel outer wall. For stainless steel outer wall, contact Customer Service.

Unitized pipe sections. No field assembly of inners and outers required.

DuraChimney® II 8″ Installation Instructions
