Modern 42" GIOIA Round Suspended/Floating Indoor Gas Fireplaces

Luxury Hanging Fireplace with standard Gas Burner system for Propane (60,000 BTUs) and Natural Gas (75,000 BTUs) For Homes and Commercial Space.

CF+D Combined Latest Technology in Crafting 42" Diameter GIOIA Suspended Indoor gas Fireplace; Available as Single Single Sided and See Through Fireplace. Also Available with fuel type; Wood Burning and Vapor-Fire (New Flame Technology).

FLOATING MASTERPIECE

Transform your interior into a statement of modern elegance with the VITA Modern 42" GIOIA Round Suspended/Floating Indoor Gas Fireplace, a breathtaking fusion of cutting-edge craftsmanship, innovative flame technology, and timeless design. Suspended gracefully from above, this fireplace becomes more than a heat source—it’s a centerpiece that redefines luxury living.

The 100% operating efficiency of our VITA Fireplaces provides a green alternative for sustainable building requirements, along with optimizing space within the specified environment. The flame can be viewed from adjacent areas, which is perfect for adjoining rooms, as a room divide, and much more.

GIOIA FEATURES:

• Fuel Types: Compatible with either Natural Gas (approx. 30,000 BTUs) or Propane (approx. 31,000 BTUs).
• Electrical Requirements: 120 Volt, 15 Amp circuit needed for venting.
• Installation: Gas and electrical connections must be completed on-site at the service door.
• Venting: Requires a 6” Inner Diameter (ID) B-Vent chimney system.
• Finish: Standard units are painted in factory Flat Black; custom finishes are available upon request with a provided sample.
• Operation: A dedicated wall switch is required.
• Dimensions: All measurements are in inches, with an allowed variance of ¼”.
• Optional decorative chimney cover available at add’l cost.
• Custom anchor options available at add’l cost.
• Enervex Intelli Draft and Damper System.
• The height of the chimney vent must extend a minimum of 2 ft. above the roof exit.

DIMENSION:

The GIOIA Round Suspended Fireplace is where art meets function—offering warmth, ambiance, and a striking visual experience all in one.

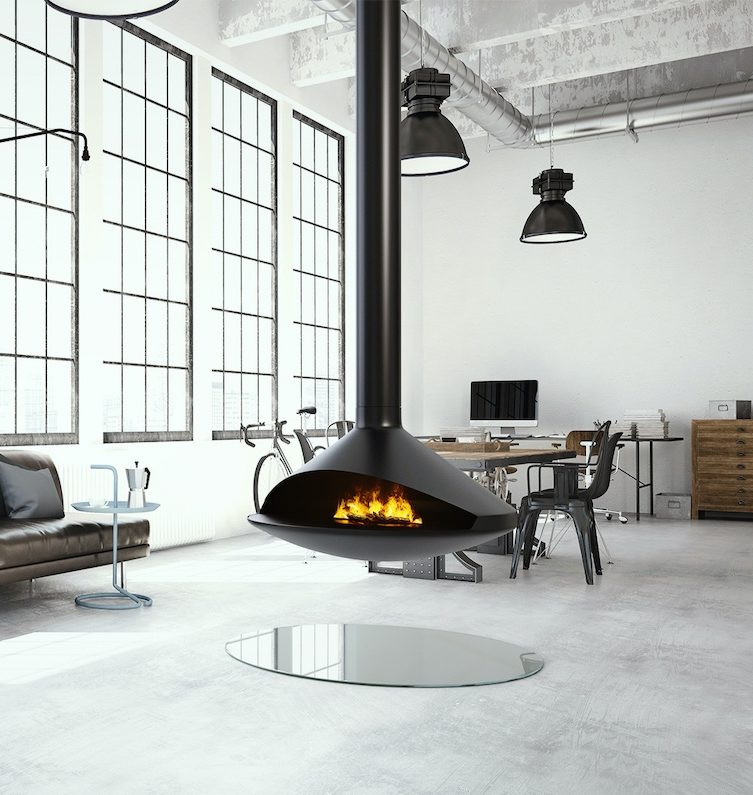

SINGLE SIDED
Standard 9ft Ceiling Application	Approx. Weight
Flat Anchor	85 lbs
Flue Pipe	60 lbs
Fireplace Body	265 lbs
Total Standard Fireplace	410 lbs

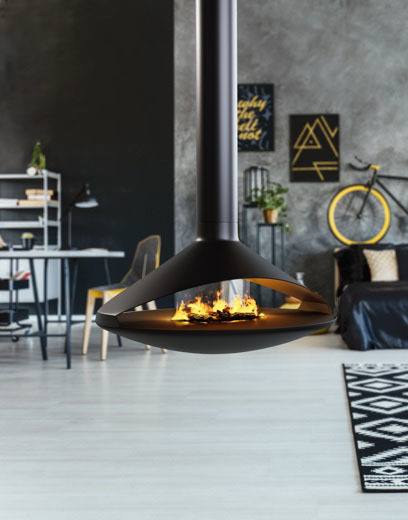

SEE THROUGH
Flat Anchor	85 lbs
Flue Pipe	60 lbs
Fireplace Body	255 lbs
Total Standard Fireplace	400 lbs



CLEARANCE OF COMBUSTIBLE

• 12” min. from floor to the bottom of the fireplace.
• A minimum 12” distance between a combustible wall and fireplace body is required.
• 1” where anchor or flue crosses the ceiling or roof.
• 1” where the chimney system terminates at wall outlet.

Fireplaces have been tested and proved to comply with: ANSI Z21.50/CSA 2.22 Vented Gas Fireplace. Certified under: ICC-ES PMG-1290

DESIGN FOR VERSATILITY

Whether you’re designing a cozy living room, a luxury lounge, or a high-end commercial space, the GIOIA adapts effortlessly. Its sculptural form and customizable features make it a favorite among architects, designers, and homeowners alike.

MANUAL AND RESOURCES

SINGLE-SIDED GIOIA FIREPLACE:

• Manual
• Specification Layout - Vertical Termination
• Specification Layout - Horizontal Termination

SEE THROUGH GIOIA FIREPLACE:

• Manual
• Specification Layout - Vertical Termination
• Specification Layout - Horizontal Termination
