Modern Floating Fireplace- 36" VITA AIDAN Single Sided & See Through Wood Burning/Vapor-Fire

Modern Home Floating Fireplace- 36" VITA AIDAN Single Sided & See Through Vapor-Fire

Custom design Safe to touch flame, no emissions or venting requirements, realistic flame Water Vapor-Fire Technology and wood burning- Available as Single Sided and See-Through Suspended/Hanging Fireplaces For residnential and Commercial.

The modern style and unique shape are sure to draw attention, while the augmented reality flame effect produced by the Vapor-Fire technology provides the ambiance of a real fire using regular tap water as its fuel source. The 100% operating efficiency of our VITA Fireplaces provides a green alternative for sustainable building requirements, along with optimizing space within the specified environment.

WOOD BURNING VITA AIDAN FEATURES:

• For use with Solid wood fuel only.
• UL/ULC Approved Stainless Steel Chimney System
• All Standard fireplaces are painted in a High heat factory matte black finish.
• All dimensions are in inches.
• Exact measurements may vary ± ¼”.
• Custom integral grate assembly.
• Custom removable spark protection screen.
• Adjustable flue draft damper control.
• The height of the chimney vent must extend a minimum
  of 3 ft. above the roof exit & a minimum of 2ft. above any
  obstruction within 10ft. radius.
• A minimum of 15ft. from fireplace opening to the top of
  chimney is required for stronger drafts.
• Optional decorative chimney cover available at an add’l cost.
• Custom anchor options available at an add’l cost.

CLEARANCE TO COMBUSTIBLES

• A minimum of 36” from the combustible materials and/or
  walls around the fireplace open side and 18” around closed
  side is required. 36” all around if a rotation device is used.
• 2” around the chimney chimney system & 18” around flue
  pipe is required
• A minimum of 18” of non-combustible floor material from
  the fireplace opening and 8” around the rest of the fireplace
  close side including the portion underneath is required.
• The bottom lip of the fireplace opening shall be at least 22”
  from the floor

VAPOR-FIRE VITA AIDAN SUSPENDED FIREPLACE

Vapor-Fire was born from a need, a want, a desire. Designed to be the perfect solution for spaces where traditional fireplaces were unable to be featured, this technology allows fire to be brought to areas where gas line and venting requirements once caused limitations. Efficient, fueled by water, and sustainable, Vapor-Fire reimagines the way fire has been used in our history and how it can be used in our future.

HANGING FIREPLACE FEATURES (WATER VAPOR-FIRE)

• Vapor-Fire burner technology
• Realistic flame without heat
• No chimney venting requirements
• Safe to the touch
• Fueled by regular tap water (softened/filtered water if required)
• 120Volt 15 Amp-GFCI
• All fireplaces factory Flat Black finish
• Custom Client finishes are available by request. Sample required.
• Heat available, most models
• Dedicated wall switch required for operation
• Custom anchor options available

WATER VAPOR-FIRE OPTIONS

OPTION 1:

• Plumbed-In to main source water line, ½” reduced to ¼” factory set connection.

OPTION 2:

• Removable 1L container for manual fill. approx. 8-10 hour burn time.

A NEW FLAME TECHNOLOGY WITH ENDLESS POSSIBILITIES

Fire came with a purpose. It met a need. It gave heat and forever influenced our world. Now, we have reinvented the flame with a revolutionary burner system which uses water as a fuel source. Vapor-Fire technology is changing visions, inspiring designs, and intriguing clients on an international scale.

• With no emissions or venting requirements, the freedom of design is yours.
• Safety concerns are put aside with zero heat emittance, and flames that are safe to touch. Enjoy the ambiance with peace of mind.
• Innovative augmented reality technology brings realistic flames to life, creating the atmosphere you’ve always wanted.

MANUAL & RESOURCES

VAPOR-FIRE AIDAN SINGLE SIDED OWNER MANUAL

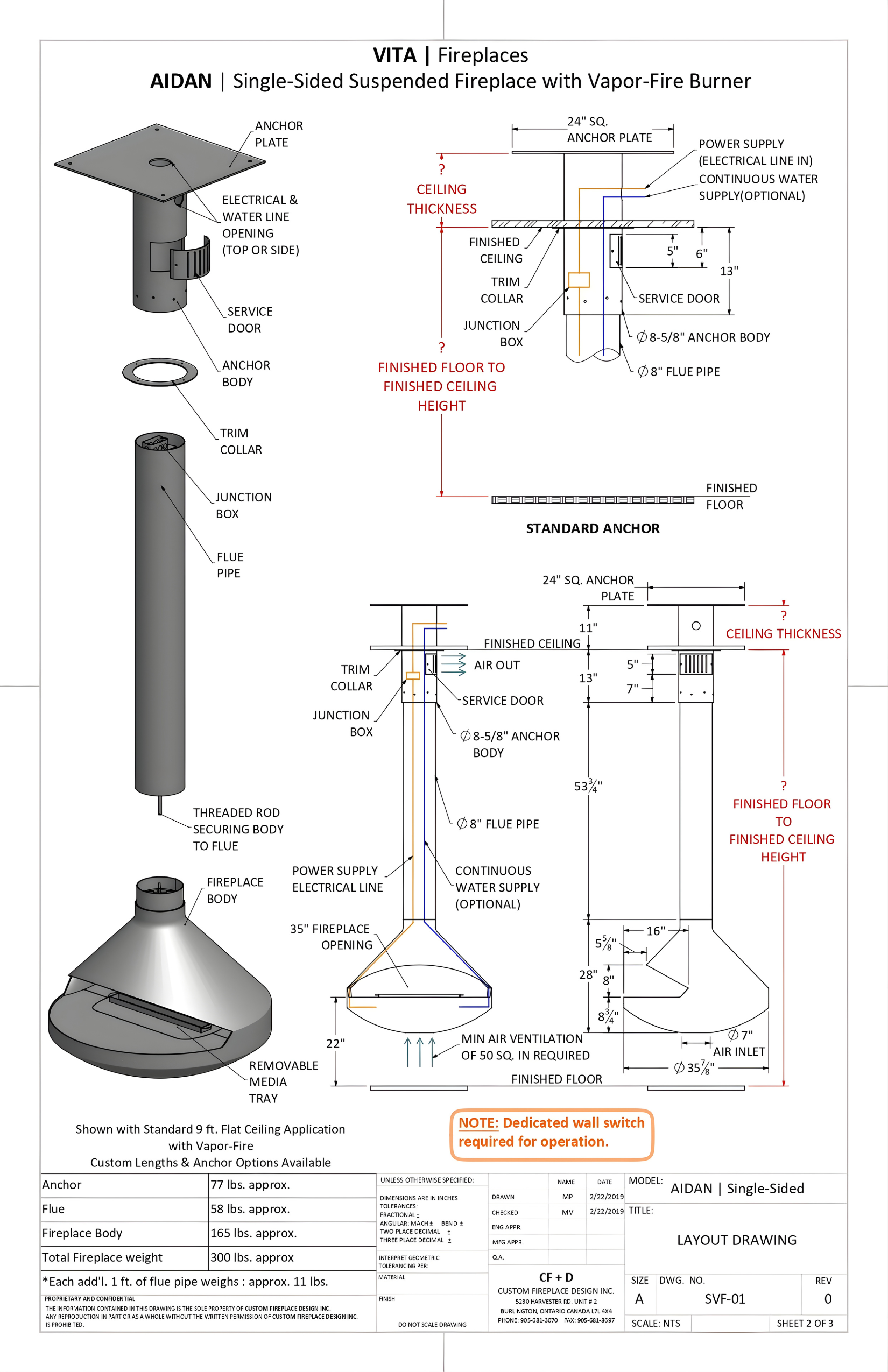

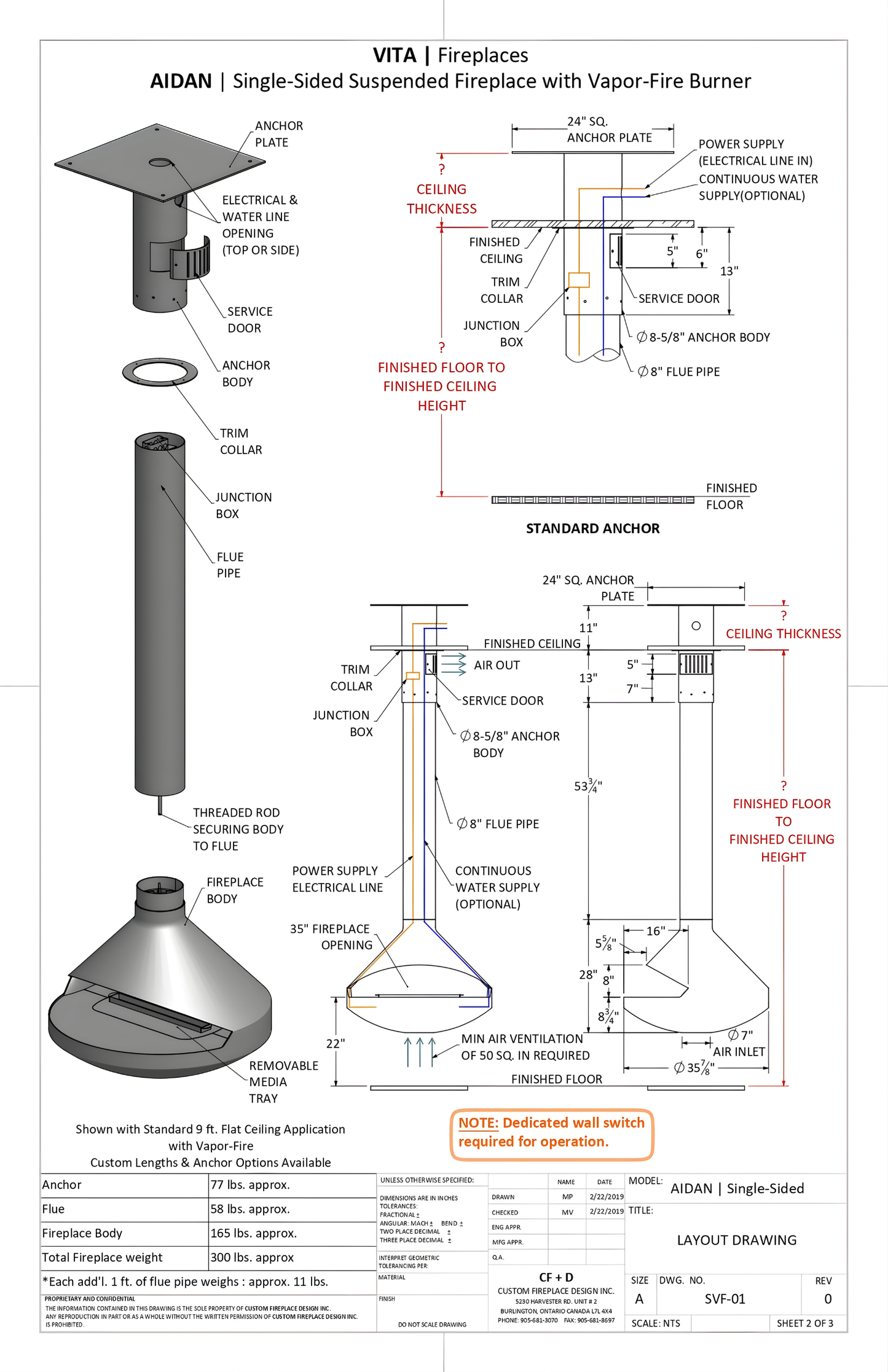

VAPOR-FIRE AIDAN SINGLE SIDED SPECIFICATIONS

VAPOR-FIRE AIDAN SEE-THRU MANUAL

VAPOR-FIRE AIDAN SEE-THRU SPECIFICATIONS

WOOD BURNING AIDAN SINGLE SIDED MANUAL

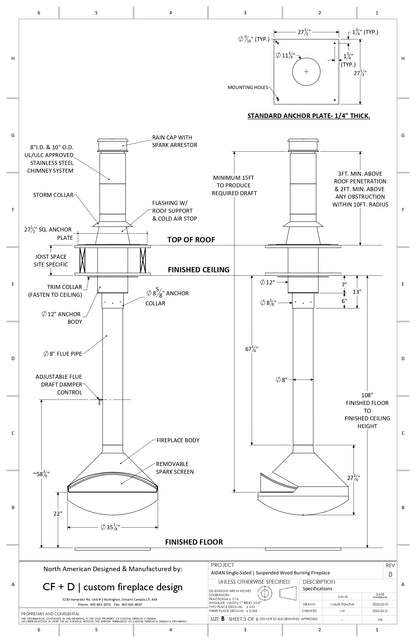

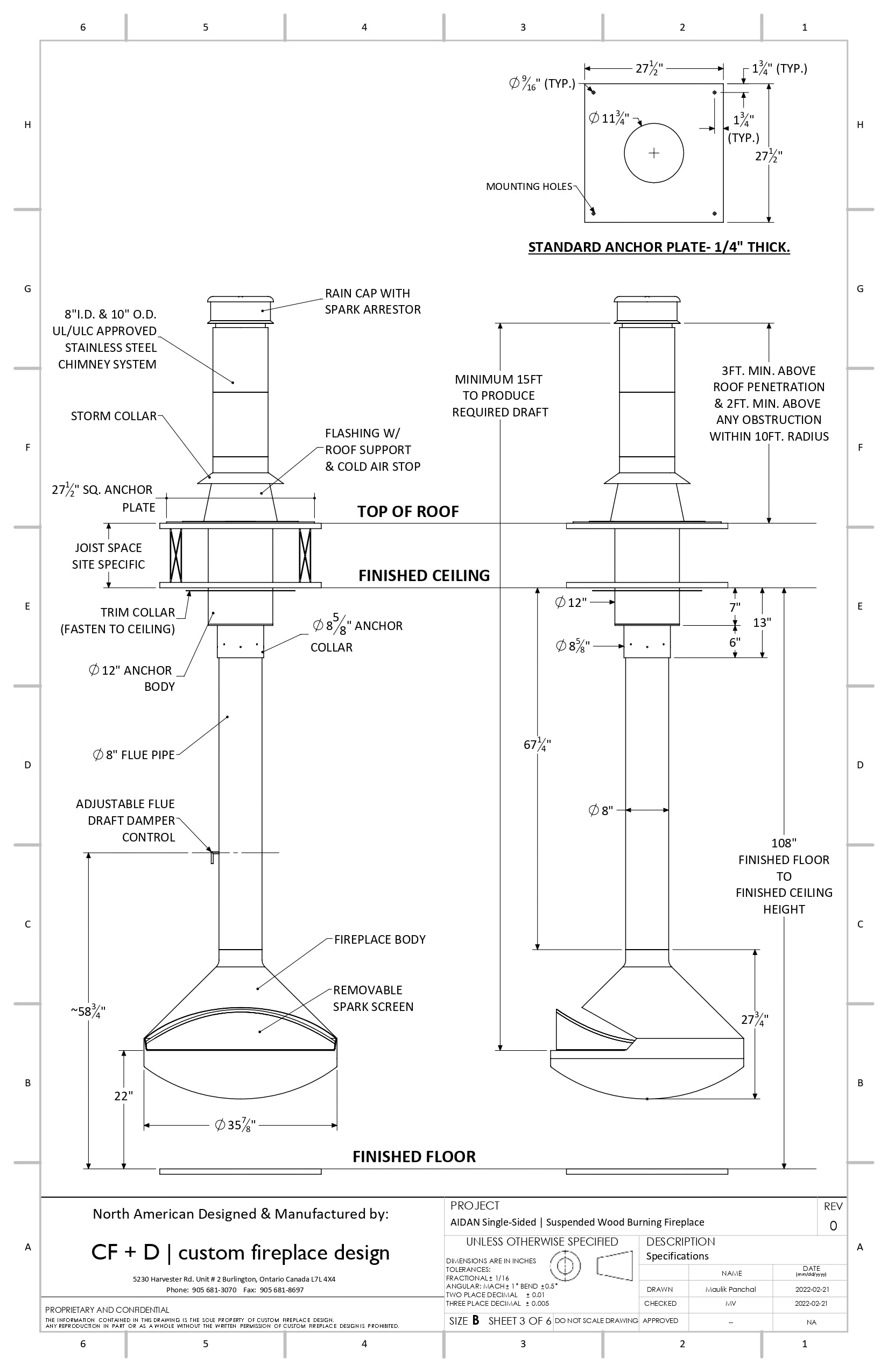

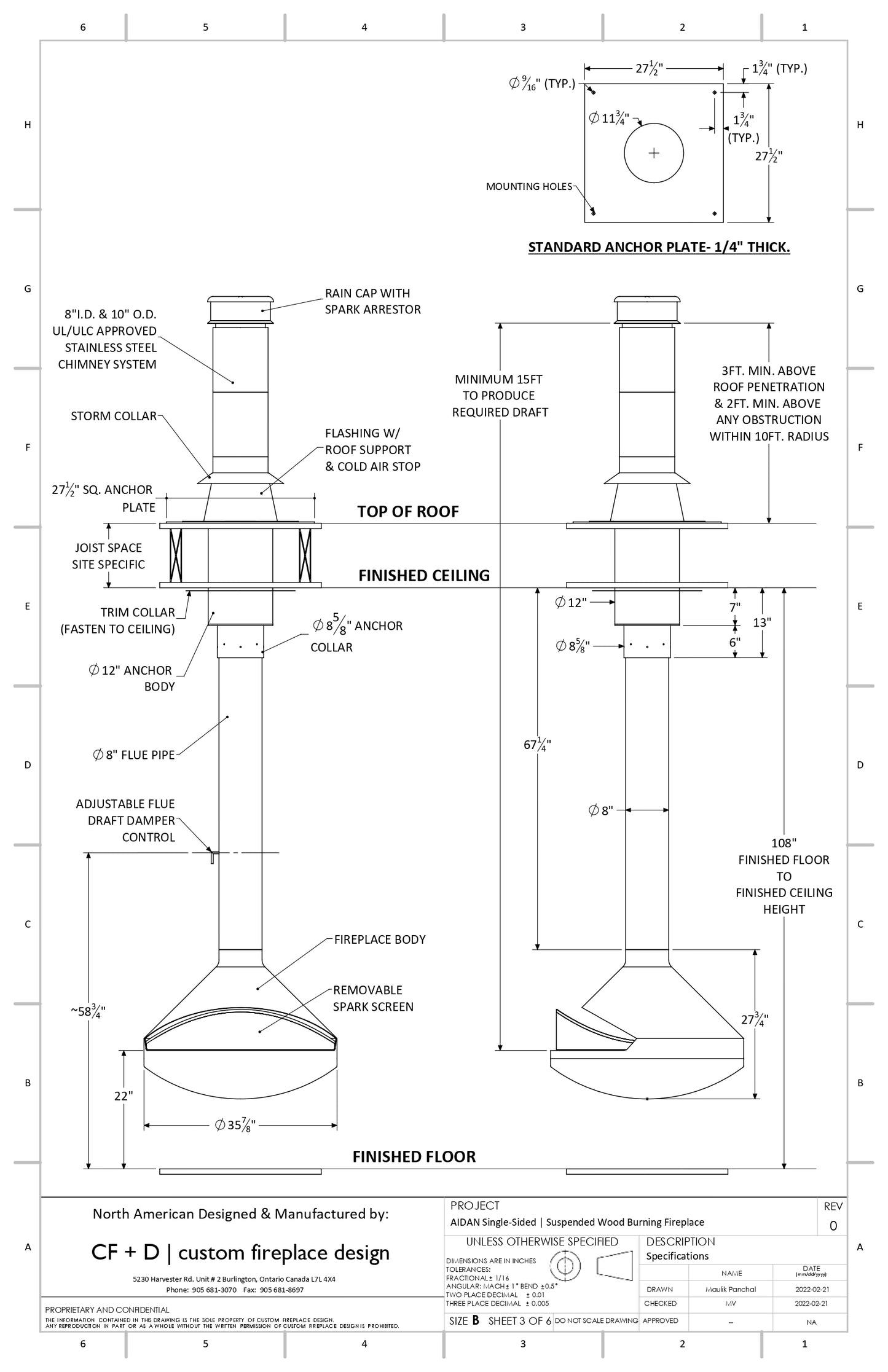

WOOD BURNING AIDAN SINGLE SIDED SPECIFICATIONS

Need a custom fireplace, we can have just about anything you think of designed and built. contact us 541.678.0243
