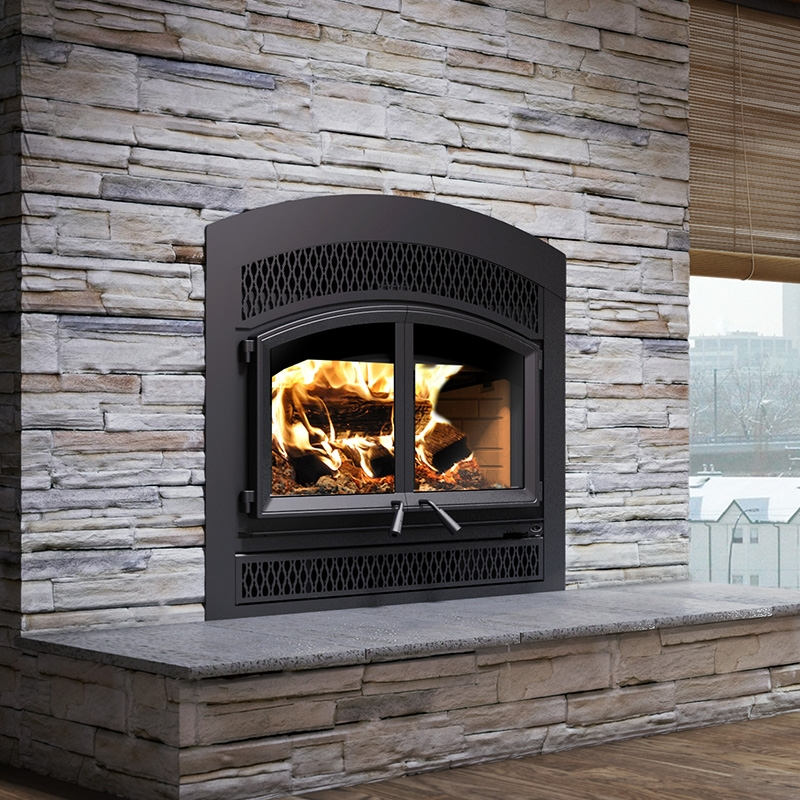

Valcourt Waterloo Arched Wood Burning Fireplace Insert- 95,000 BTU Indoor Fireplace

Valcourt Waterloo Arched Wood Fireplace - Wood Burning Fireplace Inserts, Indoor Fireple - 95,000 BTU

Largest Model With Optimum combustion temperature with 1,000 sq ft - 2,800 Heating Area, EPA 2020 approved, Select the Louver's Option to Build your Fireplace.

FREE SHIPPING TO LOWER 48 STATES - WILL SHIP WORLDWIDE FOR A FEE

The largest model in our high-efficiency series, the Waterloo wood-burning fireplace is an additional heating source whose style is just as remarkable as its performance. Adorned with a faceplate that suits your style, the Waterloo offers an impressive view of the flames. Behind its large glass doors, the firebox can hold a very large amount of wood to heat large spaces and burn for up to 11 hours on a single load.

FEATURES

• 95,000 BTUs
• EPA Approved
• Heating area of up to 2,800 sq. ft.
• 4 Arched Louver options available
• Can hold up to 60 lbs. of firewood
• Stylish ornamental facade
• Limited Lifetime Warranty

Then, when the system detects that the optimum combustion temperature has been reached, it automatically closes the second primary air damper and adjusts the secondary air control. Once the system is closed, it is possible to modulate the level of combustion by adjusting the auxiliary air control.

APPLIANCE PERFORMANCE:

The Waterloo’s smart air control system (patented) has been specifically designed to optimize combustion efficiency. Once the appliance is on and running, the combustion rate must be slowed down by manually closing the primary air damper.

GENERAL FEATURES:

The Air system of the Arched Waterloo detects that the optimum combustion temperature has been reached, it automatically closes the second primary air damper and adjusts the secondary air control. Once the system is closed, it is possible to modulate the level of combustion by adjusting the auxiliary air control.

APPROVED CHIMNEY PIPES

WATERLOO WOOD-BURNING

The Valcourt Waterloo Arched Fireplace comes standard with moulded refractory bricks for better heat distribution and a black arched faceplate, while giving you four different options for the louver to give it your own flare.

Moulded Refractory Brick Option:

Black Arched Faceplate:

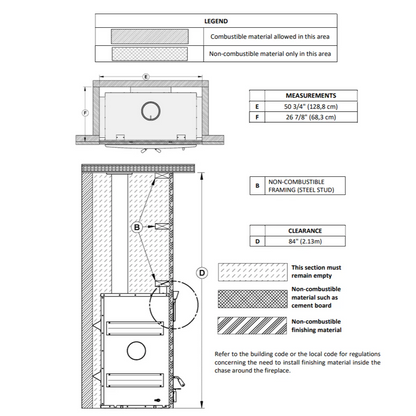

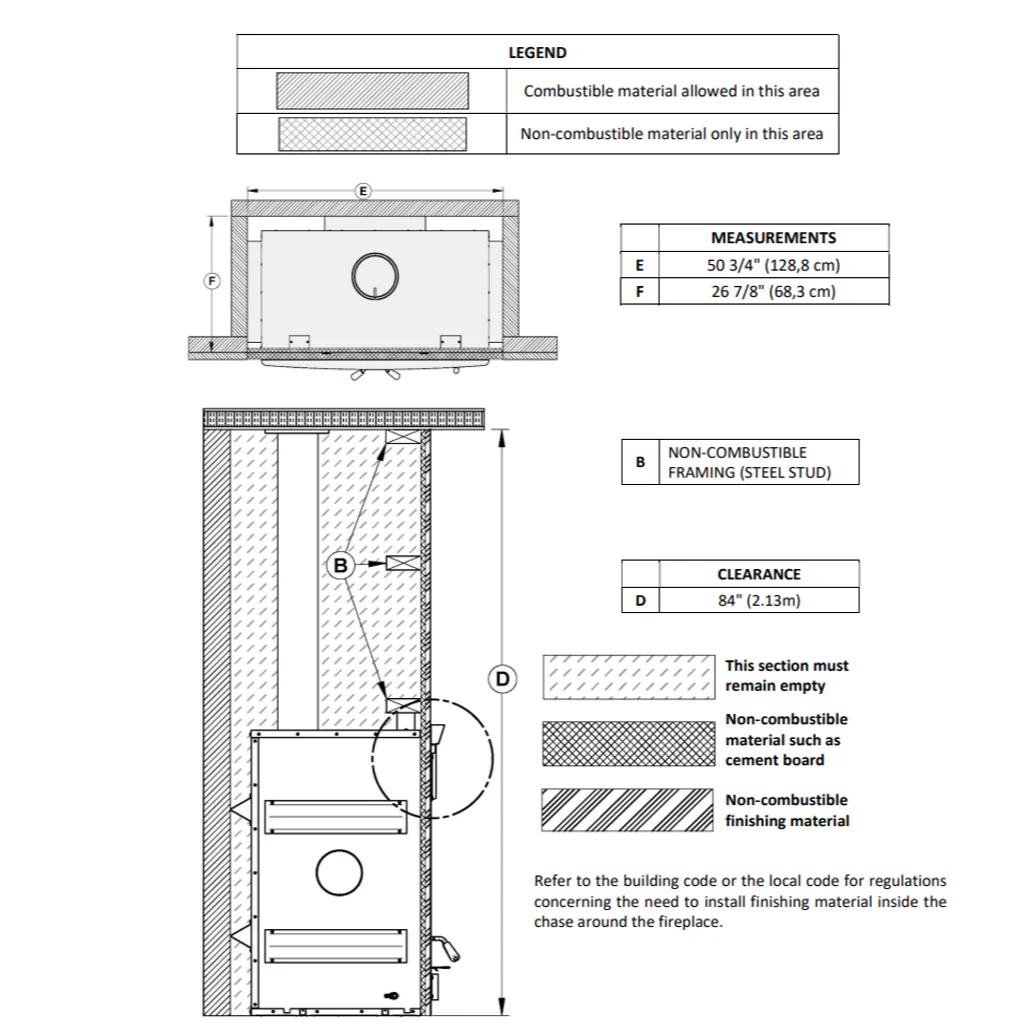

DIMENSIONS

Venting for these units require specific guidelines that must be met. Please consult  us 541.678.0243 to configure your venting options.

Installation & Operational Manual

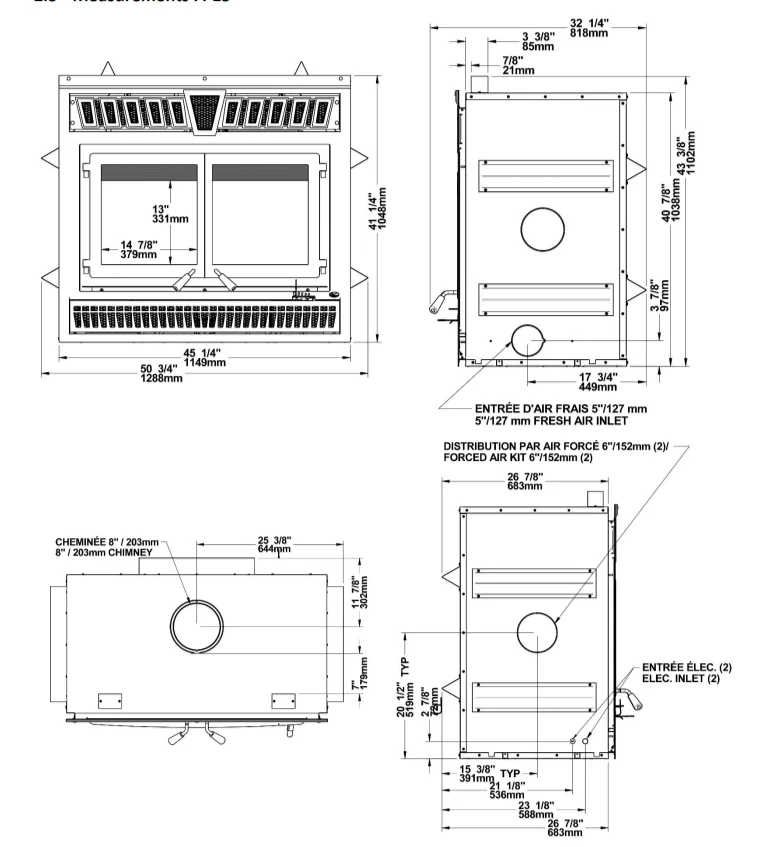

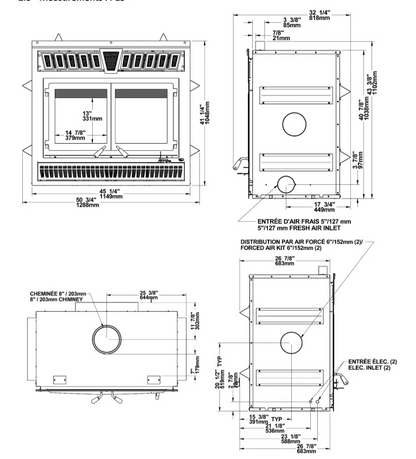

Waterloo Dimension

Fireplace Quick Install
