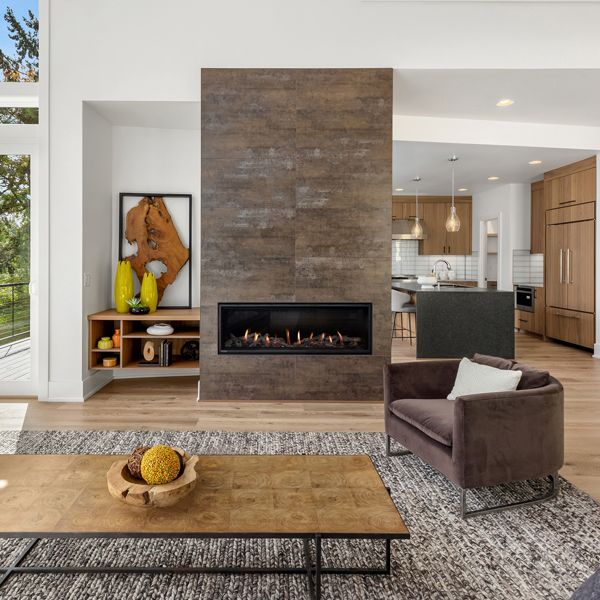

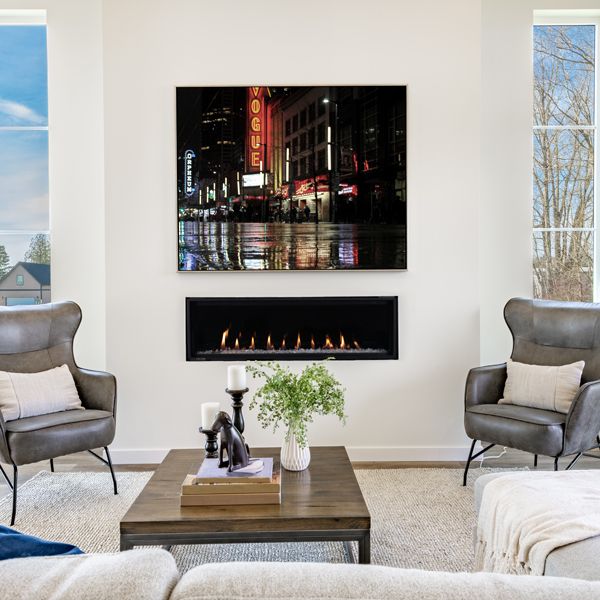

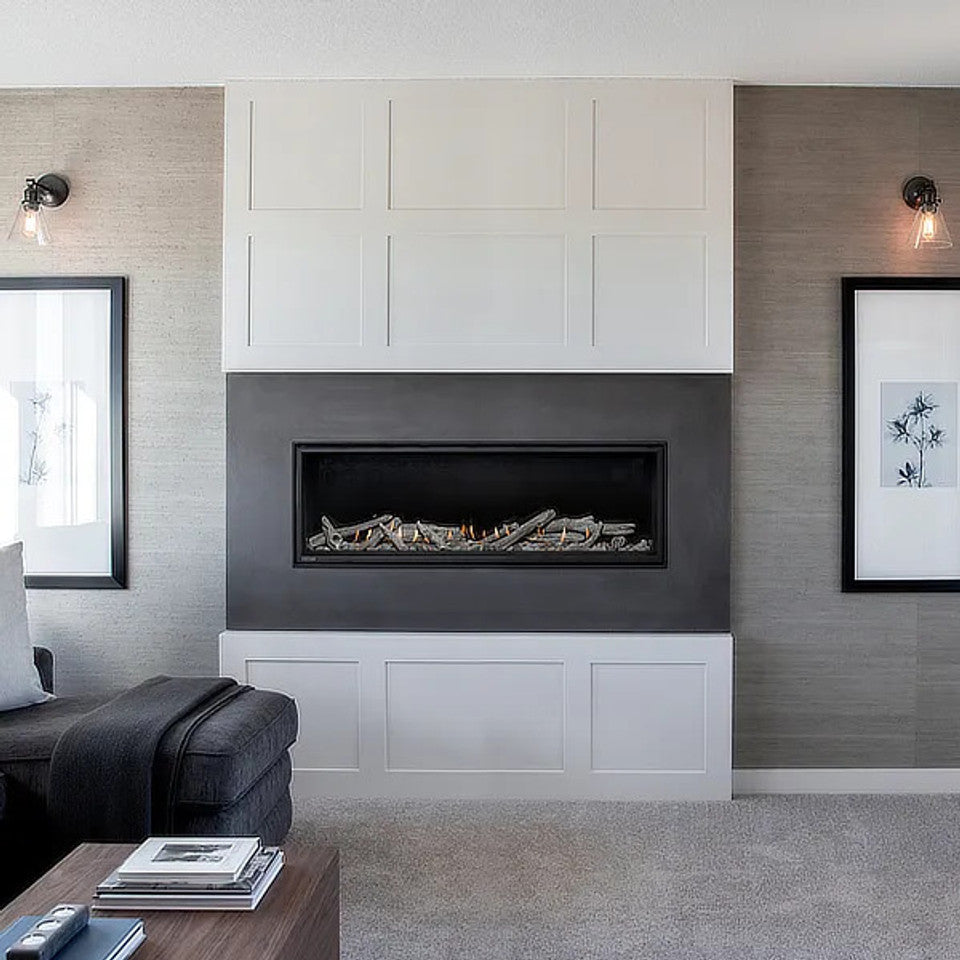

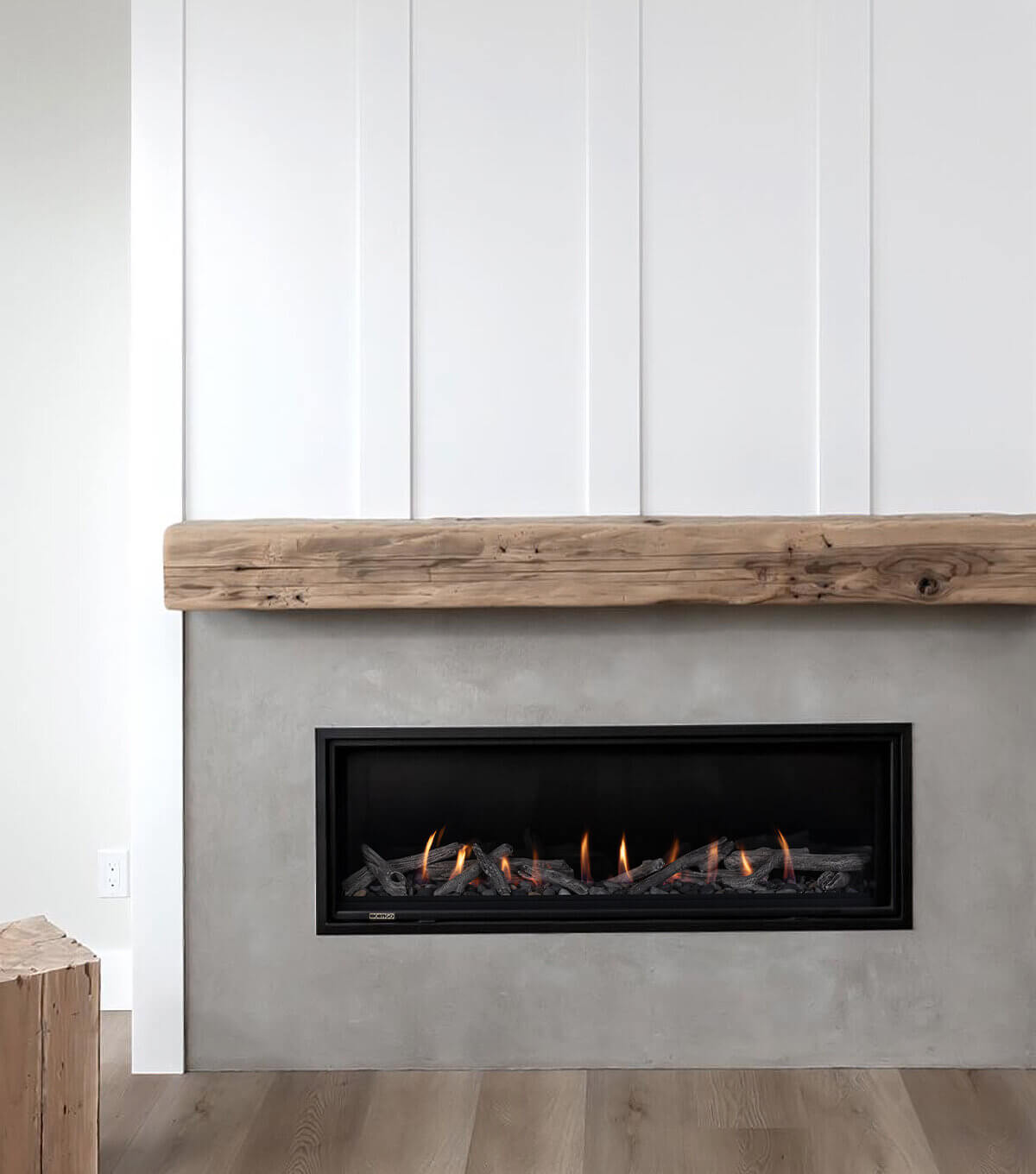

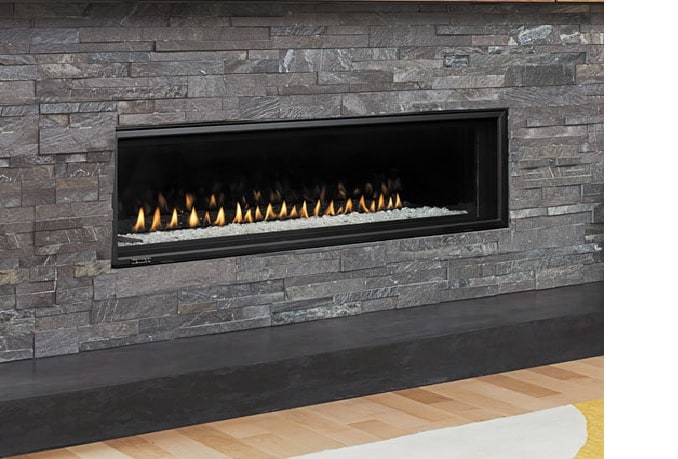

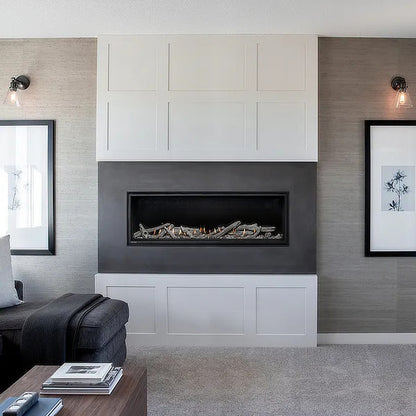

Montigo Del Ray Linear 48" Gas Fireplace

The Perfect Companion to Today’s Design Trends

Introducing the DELRAY DRL4813. This minimalist residential gas fireplace offers elegance and efficiency at an entry-level price point.

At a slim 14¼” framing depth and 4/7 direct venting, the DELRAY can add sleek contemporary styling to both new construction and retrofit installations at minimal impact to floor space.

The DELRAY Linear is a high-efficiency, mobile home-compatible fireplace that is ready to customize with any of our stunning burner media options. Combustible wood facing can be installed right down to the glass opening.

Additional features include heat management, propane conversion kits, trim kits, and more.

Standard Features:

• Concealed burner

Options:

• Remote control, fans, micro mesh screen, black reflective glass, propane conversion kit, adjustable trim kit, battery backup, Driftwood & Speckled Stones media, glass media, heat management kit

Brochure | Installation Manual

SPECS AT-A-GLANCE:

Max BTU (NG)	21,000
Framing Width	55 3/8"
Framing Height	34"
Framing Depth	14 1/4"
Glass Opening Width	48 1/2"
Glass Opening Height	14 11/16"
Inner Vent Size	4
Outer Vent Size	7
Commercial	No
Customizable	No
P.4. 1-15 Efficiency NG	63.0%
P.4. 1-15 Efficiency LP	60.0%

---

Dimensions:
