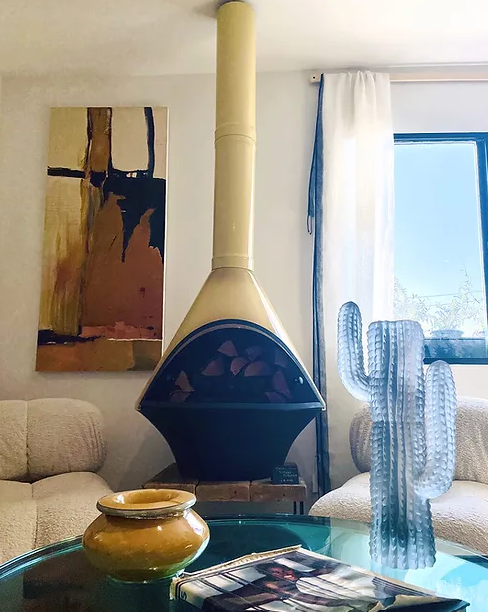

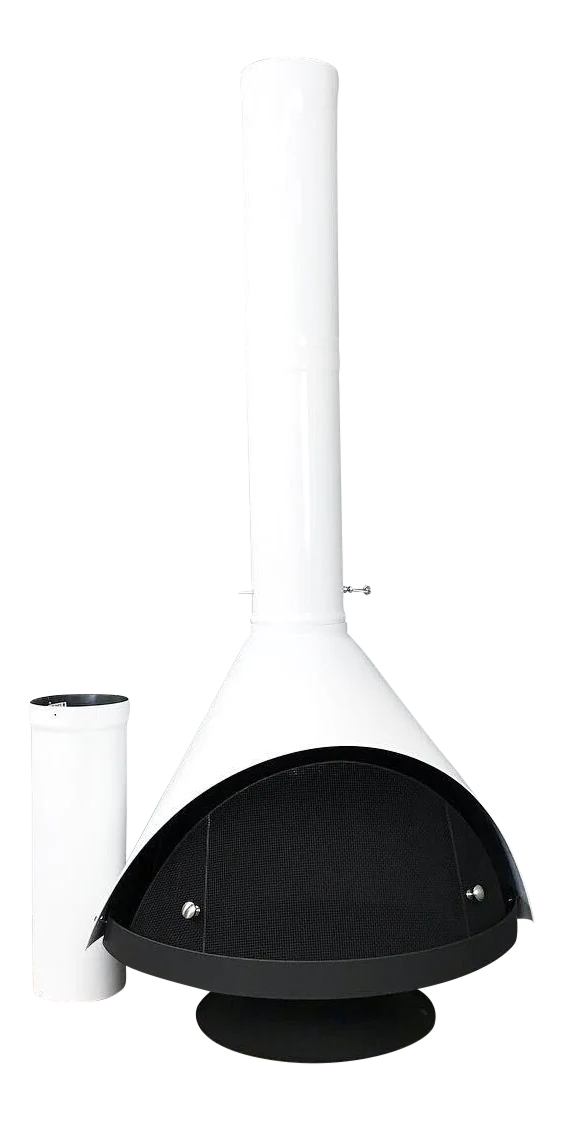

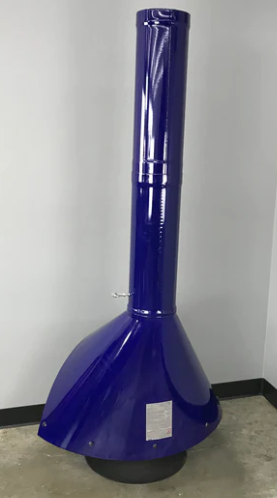

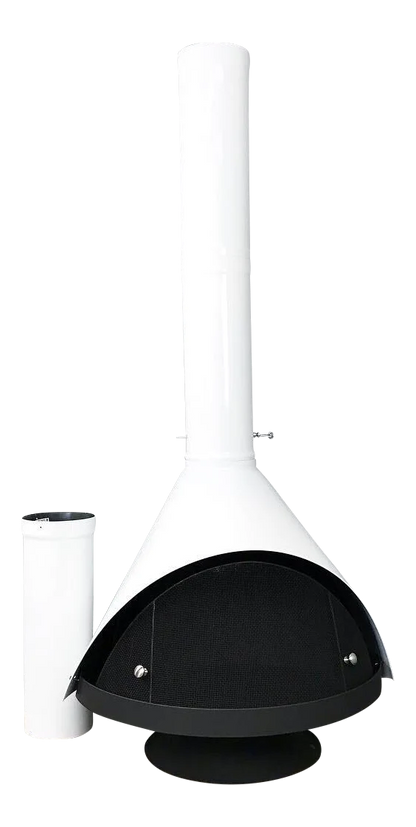

Malm 30" Zircon Freestanding Wood Burning Fireplace

Malm Zircon 30" Freestanding Wood Burning Fireplace - Modern in design, this conical shaped fireplace radiates warmth and cheer into the room.

Available in matte black and 10 beautiful porcelain colors.

MALM ZIRCON 30"

Modern in design, this conical-shaped fireplace radiates warmth and cheer into the room.

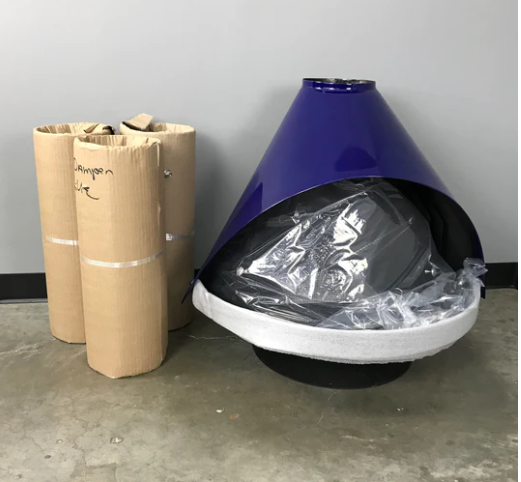

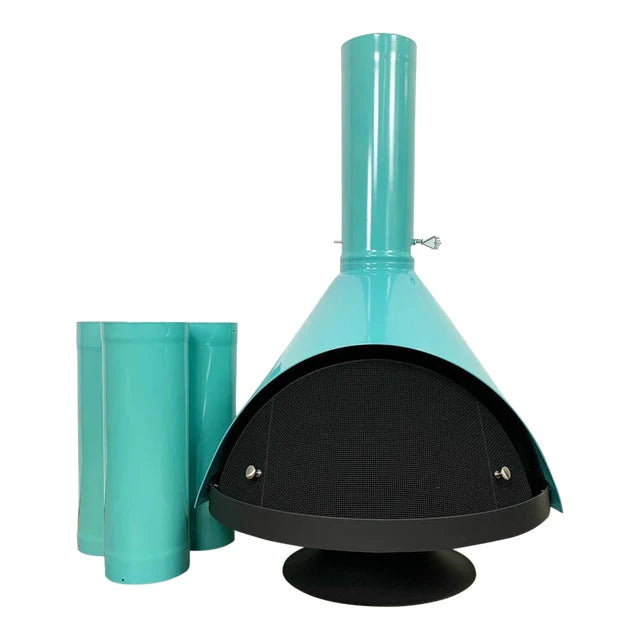

Includes lift-off screen, two sections of 7" x 24" pipe, one 7" x 30" pipe, and 4 bags Malm refractory. May be used with an optional M-16 Grate.

FINISHES:

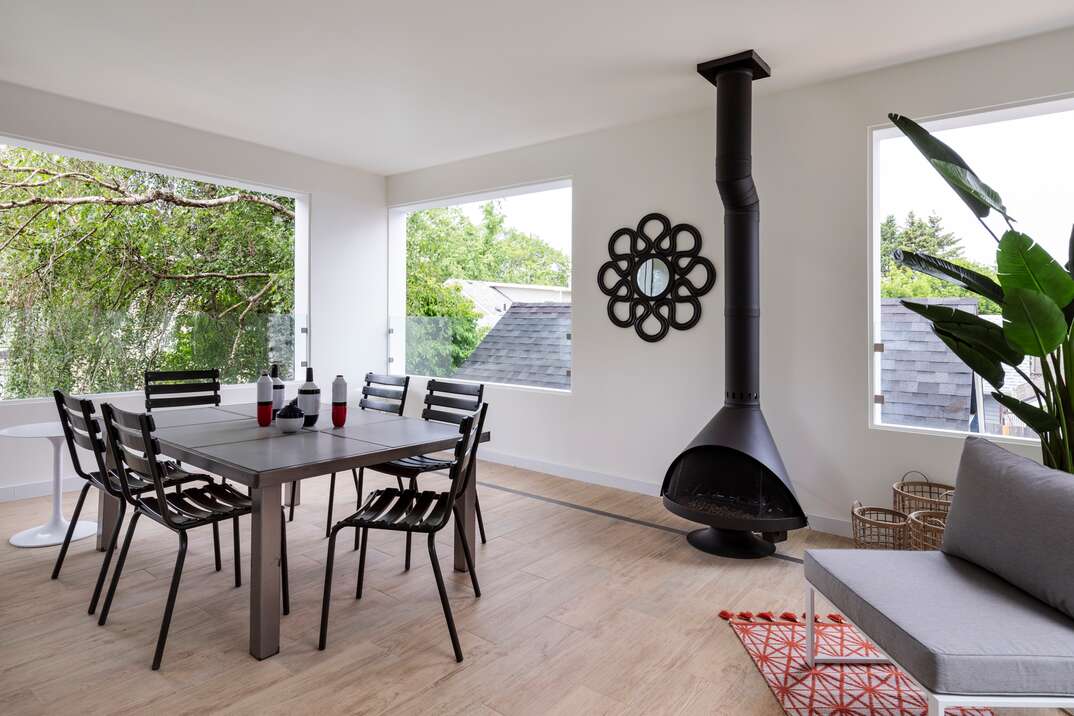

• Matte Black

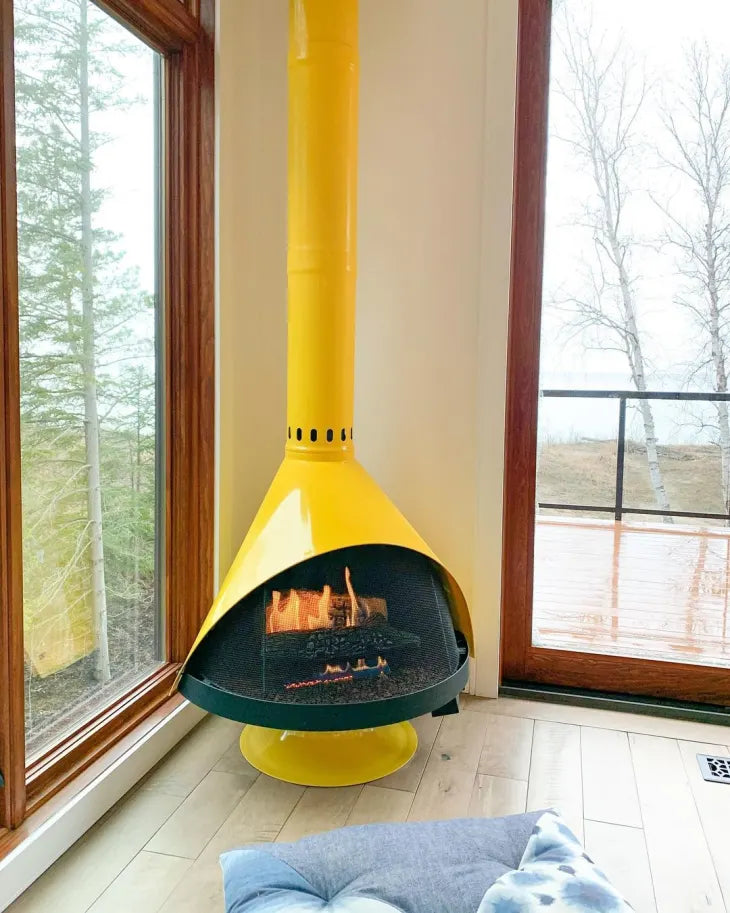

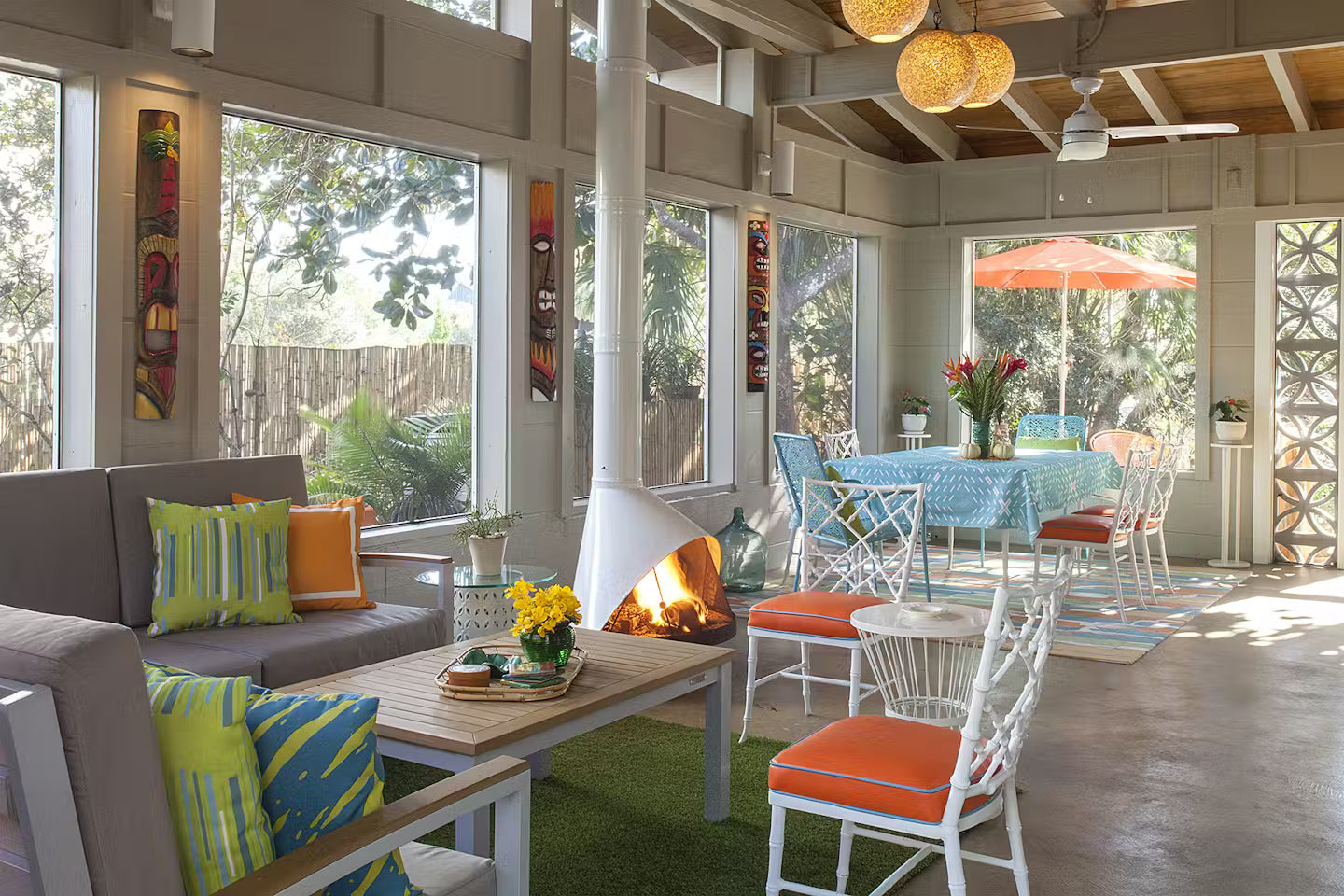

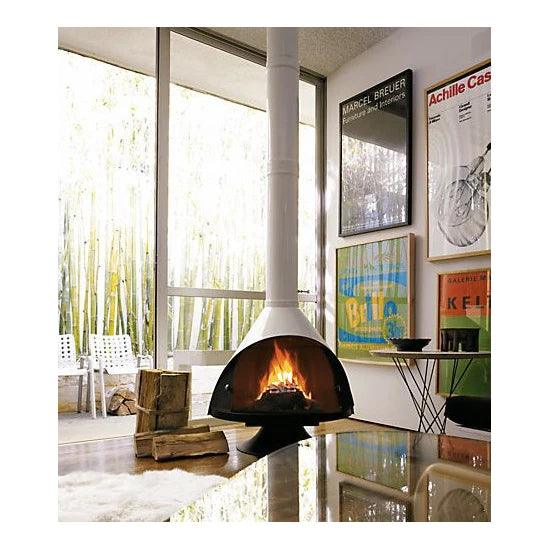

• Porcelain Colors - Almond, Ash, Black, Blue, Camel, Clay, Forest Green, Slate Gray, Terra Cotta, White

SPPECIFICATIONS:

Model Name	30" Zircon
Fuel Type	Wood Burning
Connector size	7"
Width	30"
Overall Height	96"
Weight	145 lbs.
Clearance to Combustible Wall	10"
Tested to	UL737 & ULC-S627-00 - USA & Canada

UNIT DIMENSIONS:

A	B	C	D	E	T	V	X	Y	Z
96"	30"	31"	7"	20.5"	47"	10"	15.5"	32"	19"

PORCELAINS COLORS:

WARRANTY:

• Limited 5-year Limited warranty
• Malm Warranty does not cover if the fireplace is used outdoors or in outdoor exposure

SAFETY NOTICE:

• Do not install this unit in a mobile home.
• If this fireplace is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. Contact local building or fire officials about restrictions and installation inspection requirements in your area.
• This stove must be connected to (1) a chimney complying with the requirements for Type HT chimneys in the Standard for Chimneys, Factory-Built, Residential Type and Building Heating Appliance, UL 103, or (2) a code-approved masonry chimney with a flue liner.
• Please read this entire manual before you install and use your new fireplace. Failure to follow instructions may result in property damage, bodily injury, or even death.
• Never store or allow papers, kindling, firewood, or any other combustibles within 48 inches of the unit.

About MALM Fireplaces

Malm began making fireplaces in 1960. Malm fireplaces are designed and manufactured in California's Sonoma County near the famed wine country. Modern or traditional designs are available, designed with solid craftsmanship and quality materials.

Our freestanding fireplaces are perfect for today's busy lifestyles. Traditional masonry brick fireplaces take hours to heat the mass of bricks and waste much of the heat. Malm fireplaces heat up rapidly and radiate heat efficiently in all directions. Unlike traditional wood-burning fireplaces, our fireplaces allow you a clear view of your fire from any angle and are available in a range of designer colors.

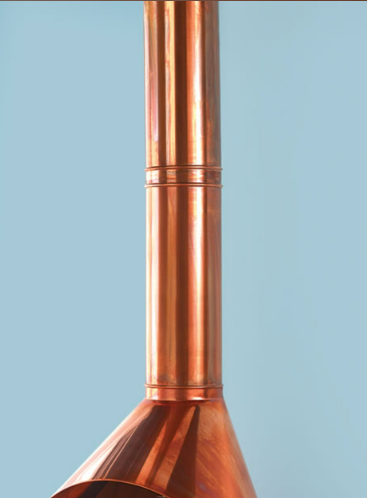

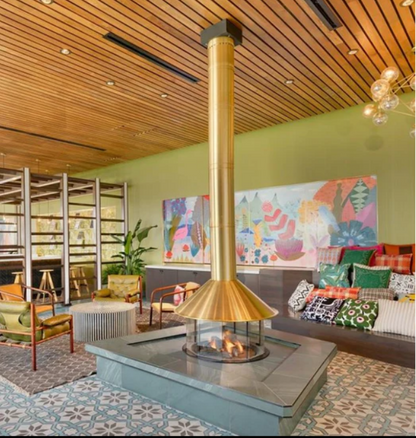

Malm's selection of architect-designed fireplaces is available in a variety of porcelain colors, brass, stainless, nickel, copper-plated, or matte black finish.

Malm also designs and creates custom fireplaces. Designs include larger size models of the standard units to large units constructed with exotic metal finishes and glass.



This appliance has been tested in accordance with National Safety Standards and has been certified by Lab Test for installation and operation as described in this manual. Please read all the instructions before beginning your installation. Check with your local building code agency to ensure compliance with local codes. In the absence of local codes the installation must comply with National Fuel Gas Code ANSI Z22.3.1. In Canada, current CAN/CGA-B149.1 and B149.2 installation codes.

MALM RETURN POLICY

Return policy for MALM Fireplaces - No Returns on MALM ZIRCON

If you have any questions? please call or email Servicesmokeymtn@gmail.com Brad at Smokey Mountain 541.678.3574 Once the order has been placed we start the process of manufacturing, it takes 6 months. if you need to cancel before it has been made, we can discuss the possibility of a refund with a 5% fee, only if we confirm the item has not started in manufacturing.

Downloads

Installation Instructions
