DuraVent FasNSeal Single Wall Special Gas Adjustable Vent Pipe - Stainless Steel

Need a custom build chimney pipes setup that fits just right? We can custom-build your chimney pipe setup and help you plan and complete the entire build with confidence. If you have any questions, please reach out to us 541.678.0243

All Fuel Chimney PDF

Warranty Notice: M&G DuraVent warranty applies to this professional grade product only when installed by a trained professional installer.

What is the FasNSeal Adjustable Vent Length?

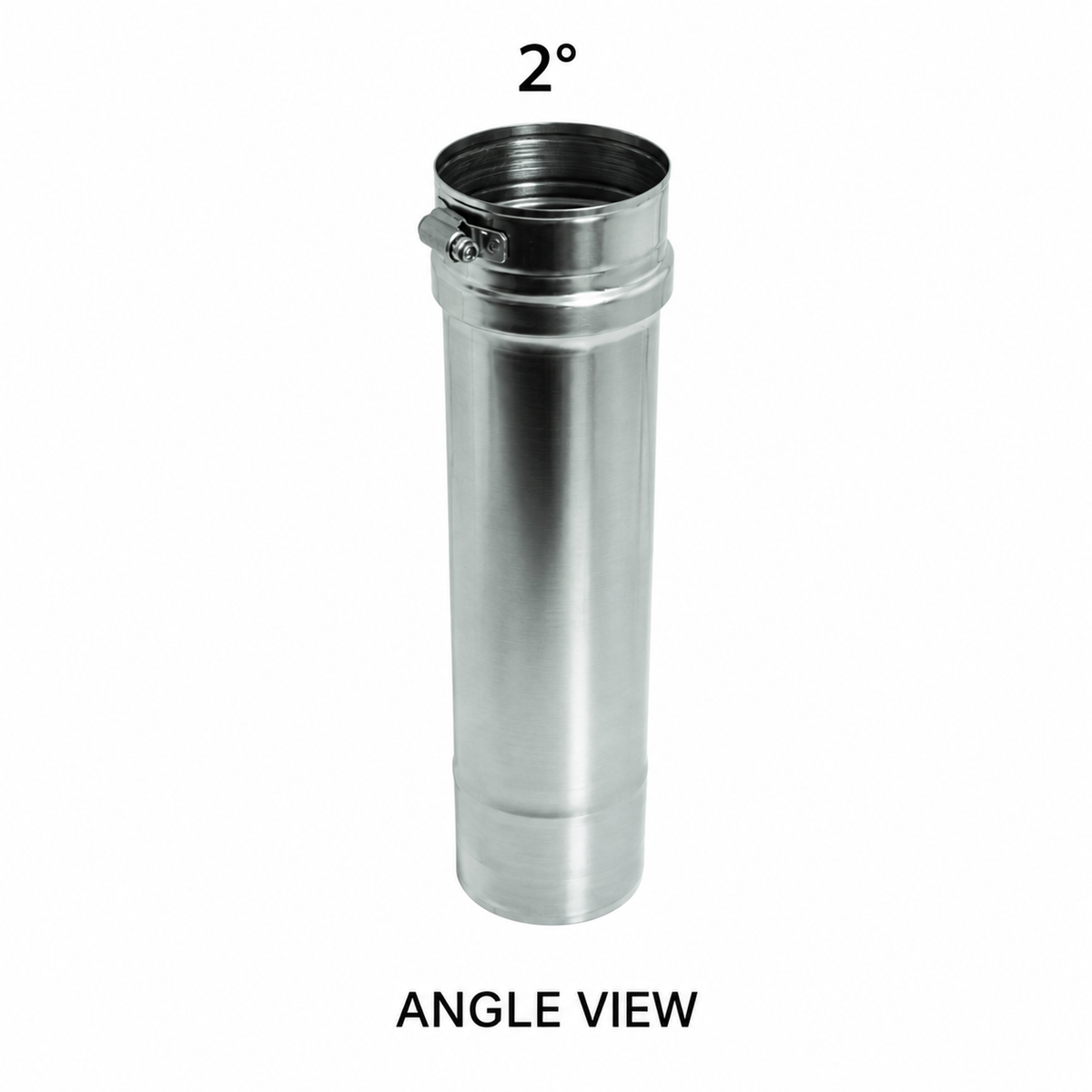

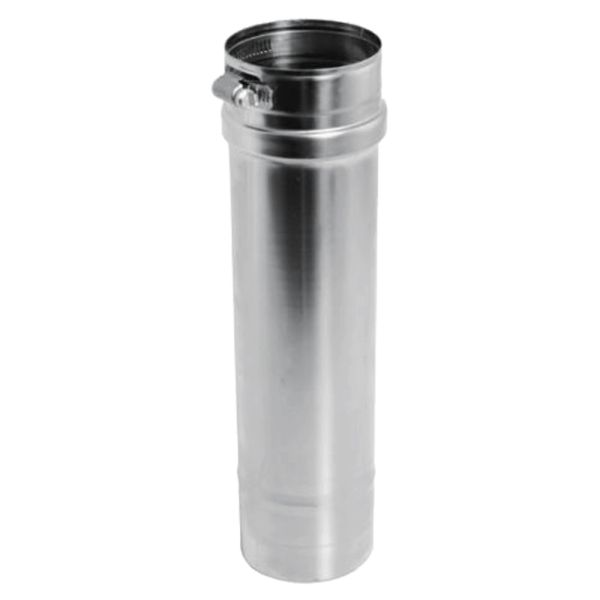

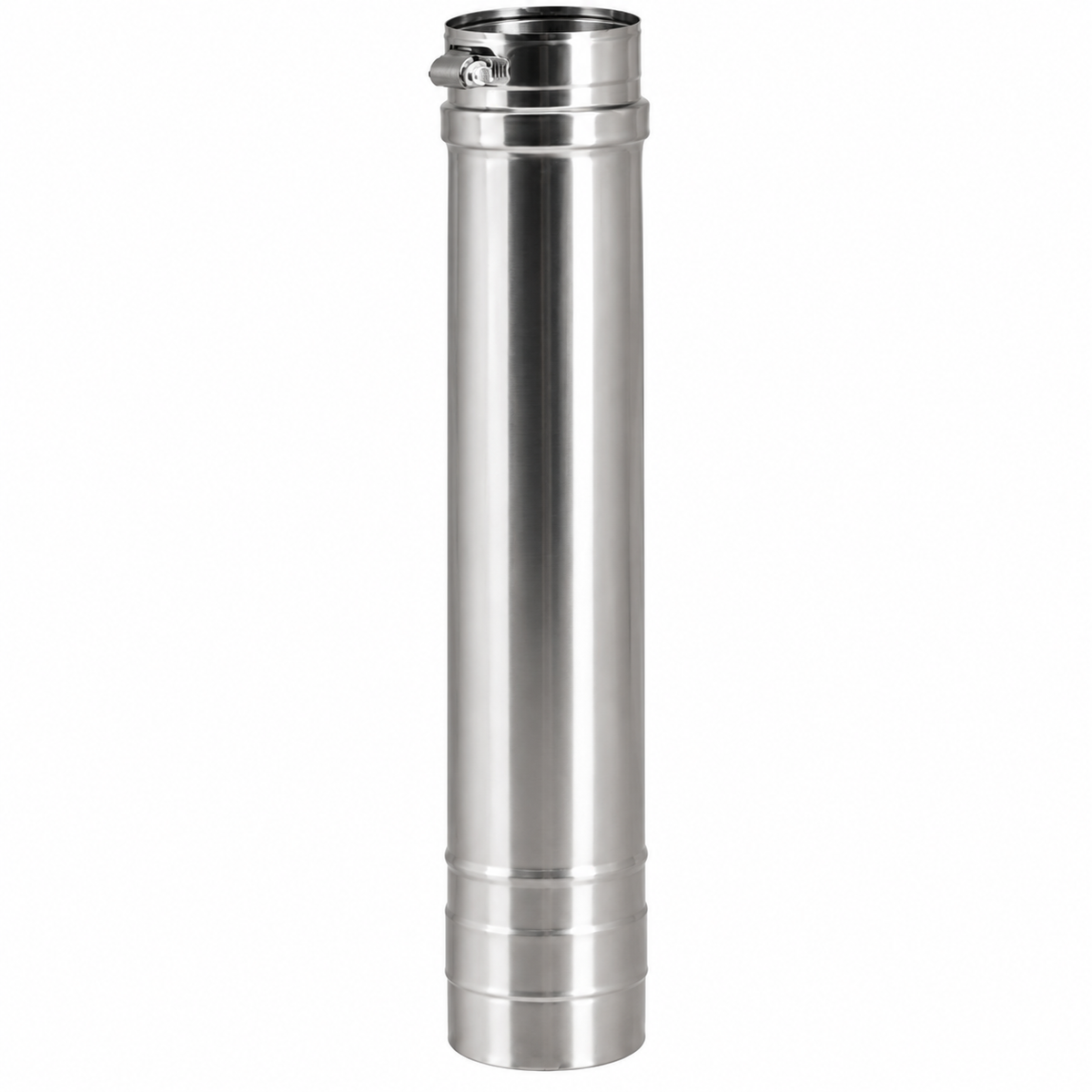

The FasNSeal Adjustable Vent Length is a flexible venting component designed to add between 2 and 14 inches of length to a straight run of FasNSeal pipe. It is built for quick, secure installation and is compatible with standard FasNSeal venting systems.

Available in Varieties of Inner Diameter - 6", 7", 8", 9", 10", 12", 14", 16" and come in a variety of pipe lengths.

AVAILABLE OPTIONS:

You can select the option you want from the dropdown and if you want need help, Call us and we'll help you put together the full parts list

• Standard FasNSeal (6"-16"): Manufactured primarily with AL29-4C stainless steel inner components, which offer exceptional resistance to the acidic condensates produced by high-efficiency gas-burning appliances
• FasNSeal -316: Upgraded to 316L stainless steel inner wall construction, providing a higher grade of alloy option often specified for specific corrosive environments or unique engineering/code requirements

How does it Work?

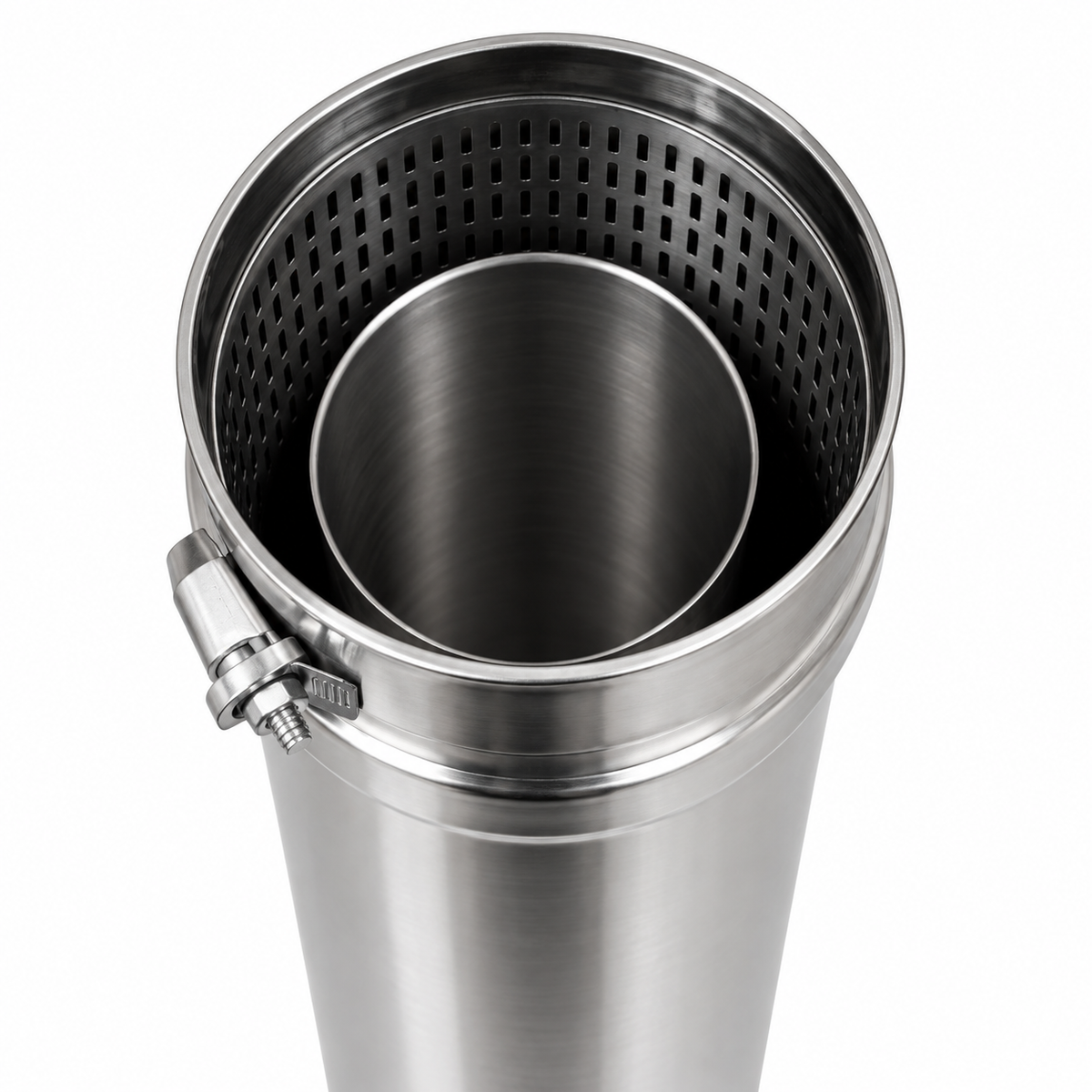

It features a patented built-in mechanical locking band that locks the connection firmly in place, along with triple-lipped directional gaskets that guide proper alignment and create a tight, leak-resistant seal. Together, these two features eliminate guesswork and make installation significantly faster and easier than traditional vent connections.

FEATURES:

• Fuel Types Compatible With: Gas
• UL Listed: Yes
• Length: 18"
• Single Wall Construction
• Limited Lifetime Warranty


Every FasNSeal single-wall and double-wall vent component comes standard with a patented mechanical locking band, triple-lipped directional gaskets, and clean smooth welds positioned 90° from the locking bands making installation quick and effortless. All components that contact exhaust gases and condensates are completely silicone-free, eliminating the adhesion inconsistencies and bond weakening that silicone causes over time, significantly reducing the risk of system breakdown and failure. Instead, fully welded seams are used throughout, ensuring a permanently leak-free product built to last.

SPECIFICATION;

• Configuration: Pipe Length
• Inner Pipe Material: AL-29-4C Stainless Steel
• Material: Stainless Steel
• Pipe Shape: Round
• Vent Construction: Single Wall
• Fuel Type: Gas

What are the installation requirements?

A minimum of 2 inches of overlap is required to ensure a secure and safe connection. Once the overlap is in place, the mechanical locking band engages automatically, so no additional tools or hardware are needed to complete the connection.

RESOURECES AND MATERIAL

Installation

FasNSeal Product Catalog

RELATED DURAENTS LINKS

Duravent Chimney Flue

Duravent Chimney Kits

Duratech Chimney Pipe

Duraplus Chimney Pipe

DVL Double wall Stove Pipe

Looking for Simpson Dura-Vent? You found it! Simpson Dura-Vent has changed their name to DuraVent. DuraVent is a recognized technological leader in the venting industry. Consistently the first to market with new innovations in venting systems, DuraVent has captured a leadership position in emerging markets. DuraVent has patents for several products and continues to design safe and technologically advanced venting. The company's research into solving problems with corrosion, when biofuels such as corn are used, led to the break-through patent for PelletVent Pro. Scientifically proven materials and unequalled engineering make DuraVent products not only the best choice, or safest choice, but the only choice for professional quality venting products.

Not sure what you need? Call us at 541.678.0243 and we'll help you put together the full parts list.
