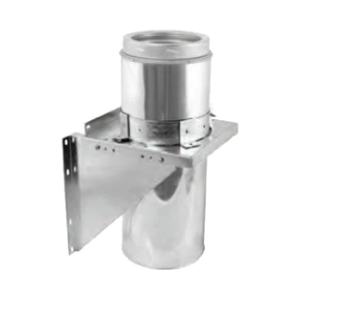

DuraVent DuraTech 7" Diameter 7DT-TSBSS Stainless Adjustable Tee Support Bracket

DuraVent DuraTech 7" Diameter 7DT-TSBSS Stainless Adjustable Tee Support Bracket

$450.00 USD
$450.00 USD
Sale Sold out
Shipping calculated at checkout.
Send us a message




Product Note:Allow a 2" clearance to combustibles when installing a DuraTech Chimney.

Use as wall support for chimney system. Use of straps is optional. Supports up to 50’ of DuraTech Chimney without straps, and 70’ of DuraTech Chimney with straps.


Attaches to chimney pipe. Can be installed above or below the Tee. If installed below the Tee, a short section of pipe is required. The adjustable base provides 2” to 6” clearance to the wall.


Adjustable Tee Support Brackets are available in Galvalume or Stainless Steel  (viewing now)


Product Details and Dimensions

Size 7” Diameter GA Adjustable Tee Support
A 9”
B 12”
C 13”
D 13 3⁄4”

Specifications:

  • Diameter: 7"  (optional 6 or 8 also)
  • Construction material: Stainless steel
  • Clearance: 2"
  • Listings: Listed to the UL 103 height standard, UL file #MH7399. Listed to the Canadian S610 standard













Manufacturer: M&G Duravent Product Collection:DVLProduct:ElbowsStyle:Double WallType:Replacement PartMaterial:SteelMpn #8790Weight4.90 lbs.
