DuraVent 46DVA-VCH 4” x 6 5⁄8” DirectVent Pro High/Low/Extended Termination Cap

Need a custom build chimney pipes setup that fits just right? We can custom-build your chimney pipe setup and help you plan and complete the entire build with confidence. If you have any questions, please contact us 541.678.0243

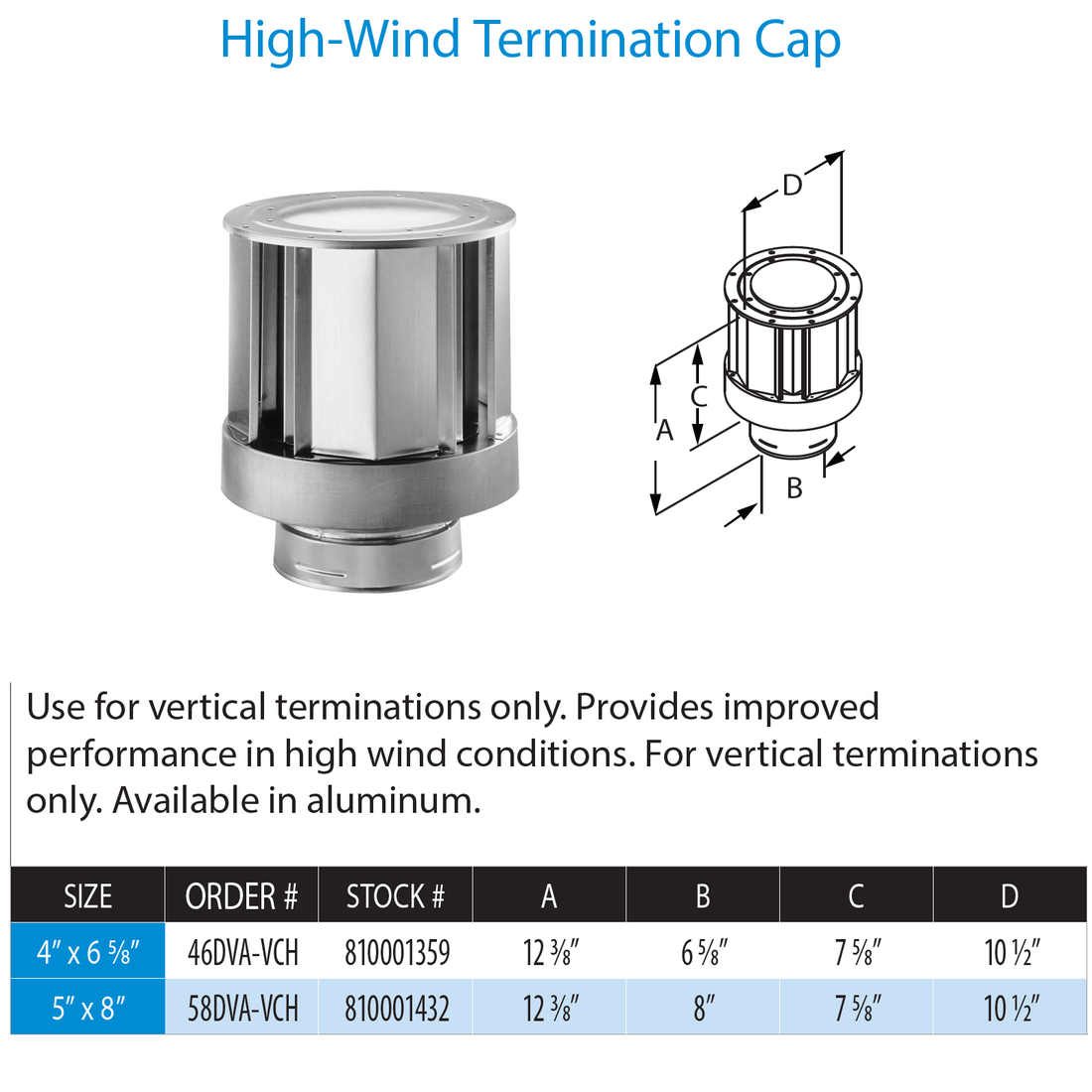

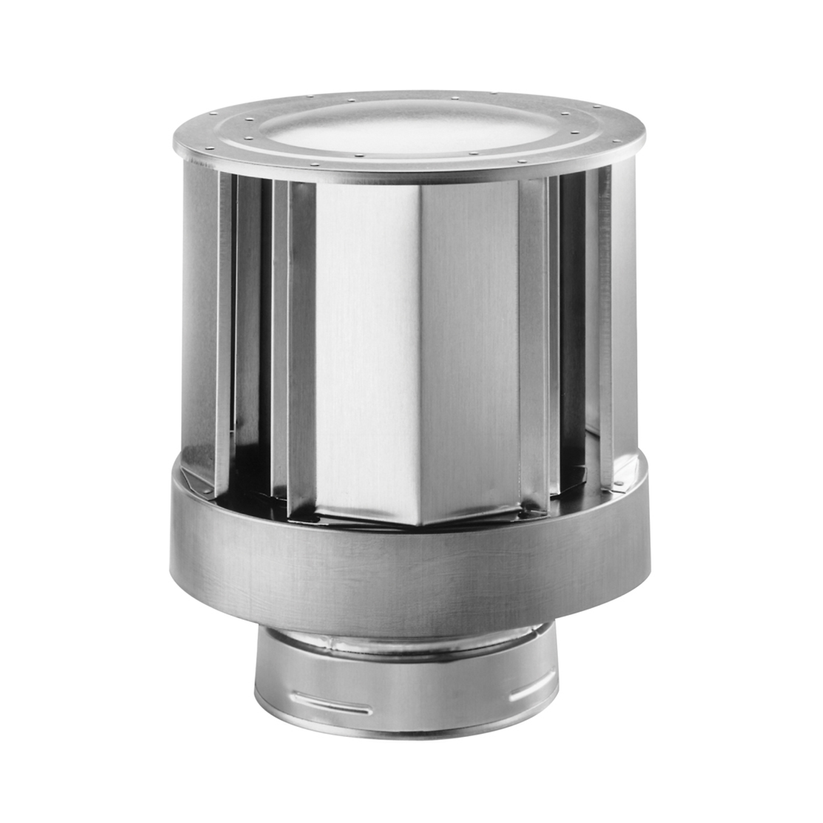

DuraVent 46DVA-VCH DirectVent Pro High-Wind Termination Cap For 4” x 6 5⁄8” direct vent.

Use for vertical terminations only. Provides improved performance in high wind conditions. For vertical terminations only.

Available in aluminum.

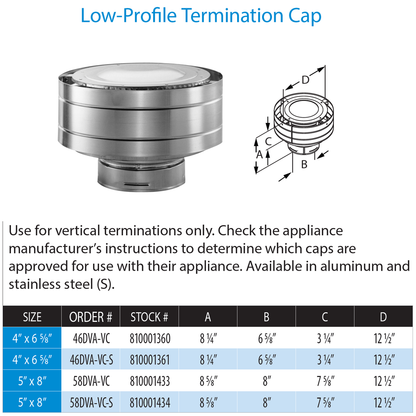

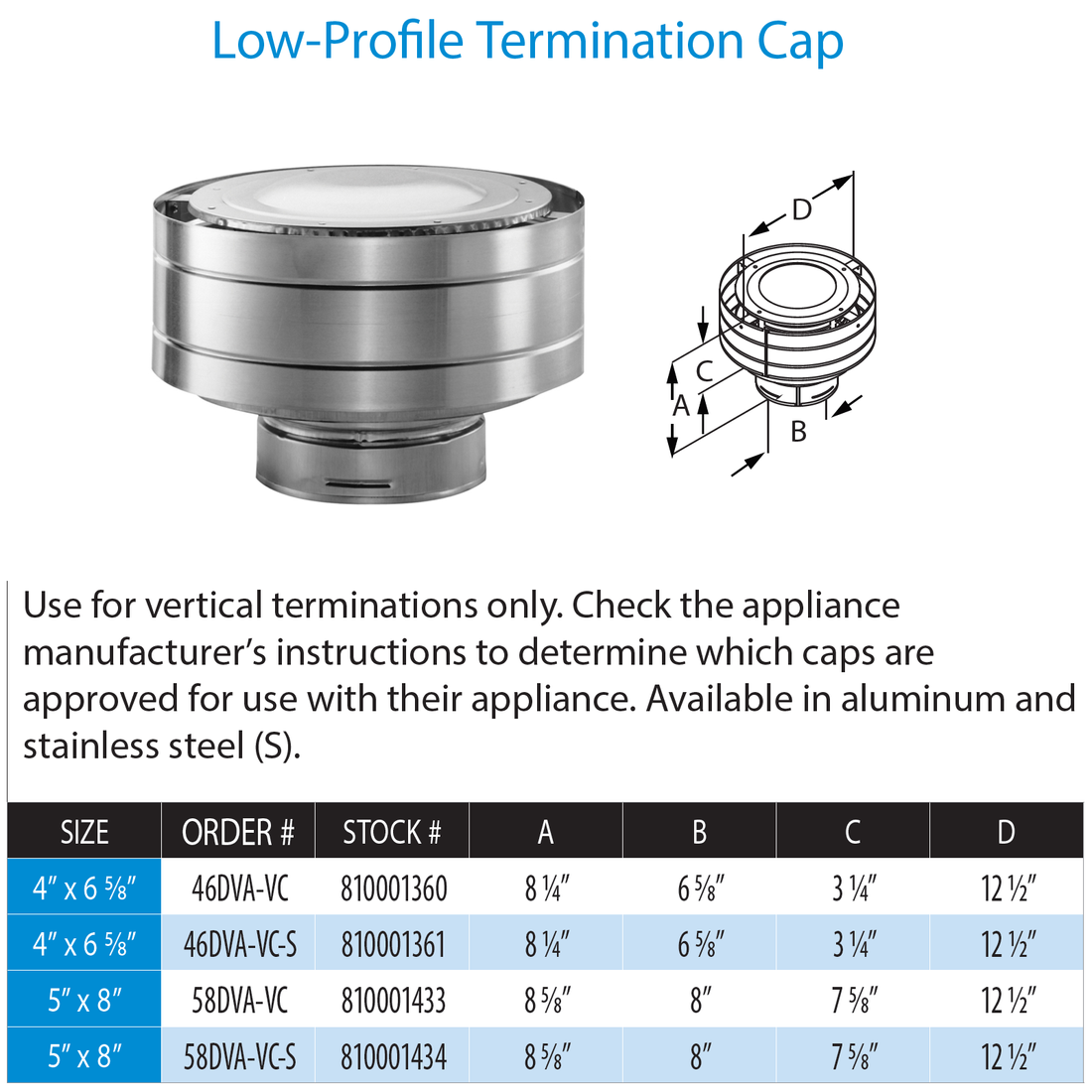

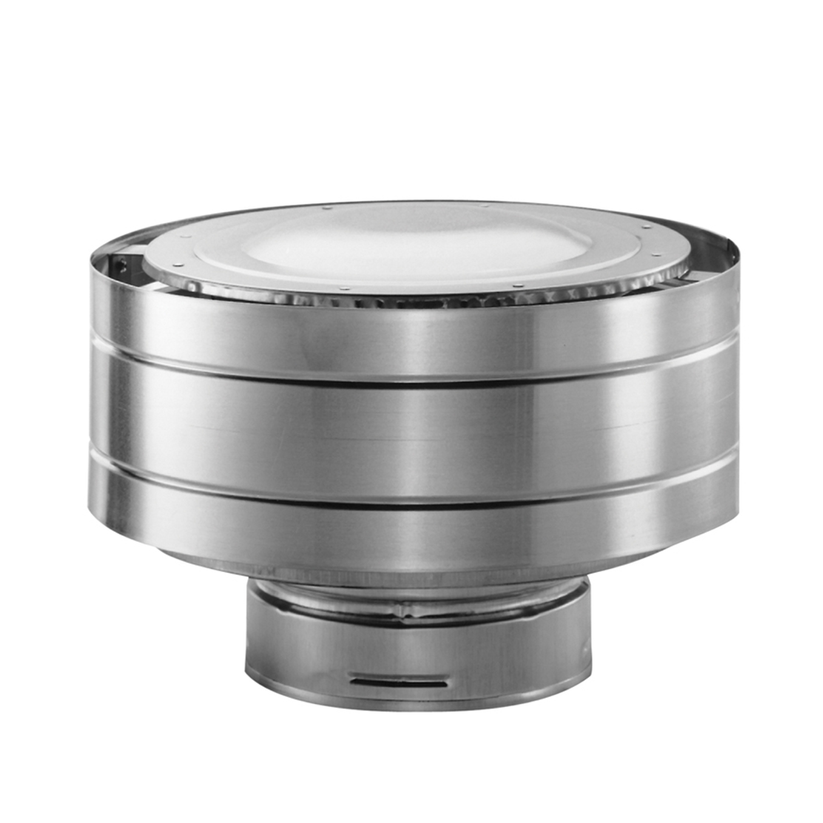

DuraVent 46DVA-VC DirectVent Pro Low-Profile Termination Cap (aluminum) For 4” x 6 5⁄8” direct vent.

Use for vertical terminations only. Check the appliance manufacturer’s instructions to determine which caps are approved for use with their appliance.

Available in aluminum and stainless steel (S).

DuraVent 46DVA-VC-S DirectVent Pro Low-Profile Termination Cap (SS) For 4” x 6 5⁄8” direct vent.

Use for vertical terminations only. Check the appliance manufacturer’s instructions to determine which caps are approved for use with their appliance.

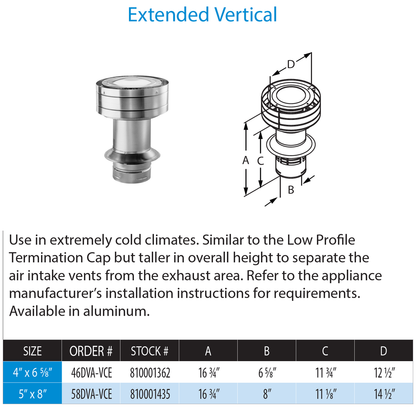

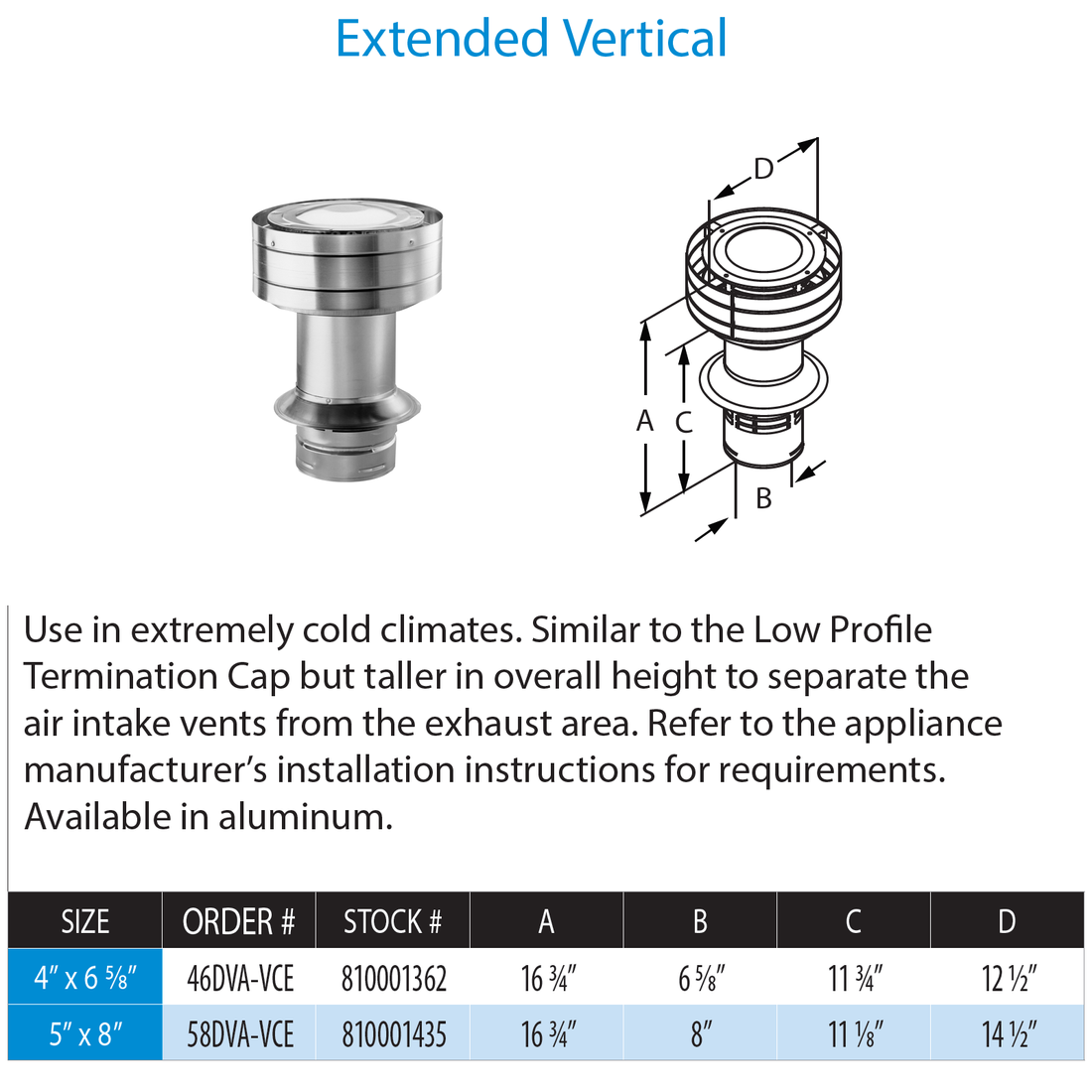

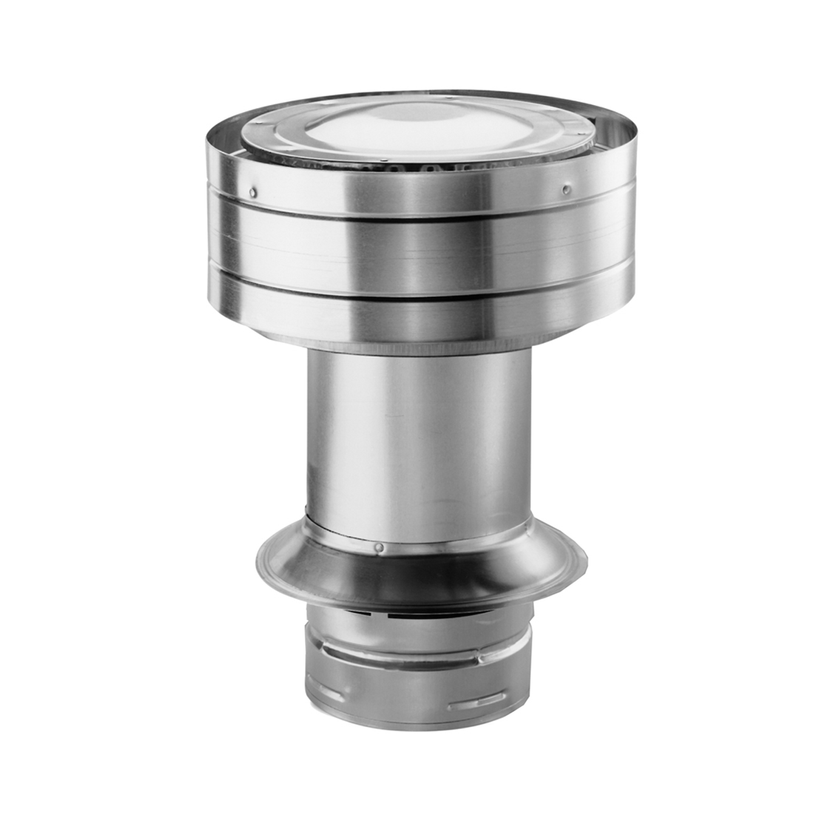

DuraVent 46DVA-VCE DirectVent Pro Extended Vertical Termination Cap For 4” x 6 5⁄8” direct vent.

Use in extremely cold climates. Similar to the Low Profile Termination Cap but taller in overall height to separate the air intake vents from the exhaust area.

Refer to the appliance manufacturer’s installation instructions for requirements.
