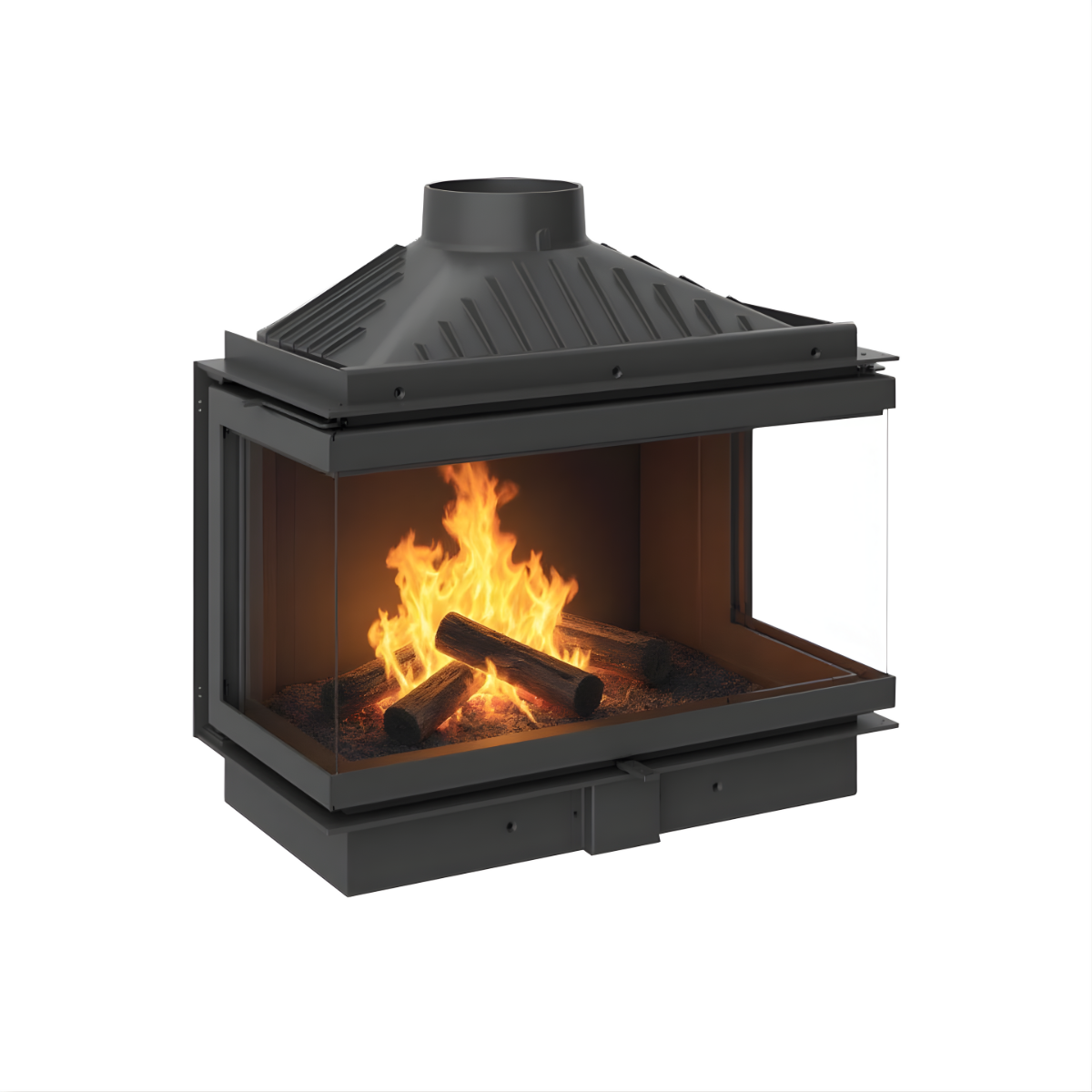

• Dorako Eco Max 7 Three Open Sided Glass view Wood burning Stove With visible burning logs inside and hole for chimney installation on the top of the fireplace and display on a white background

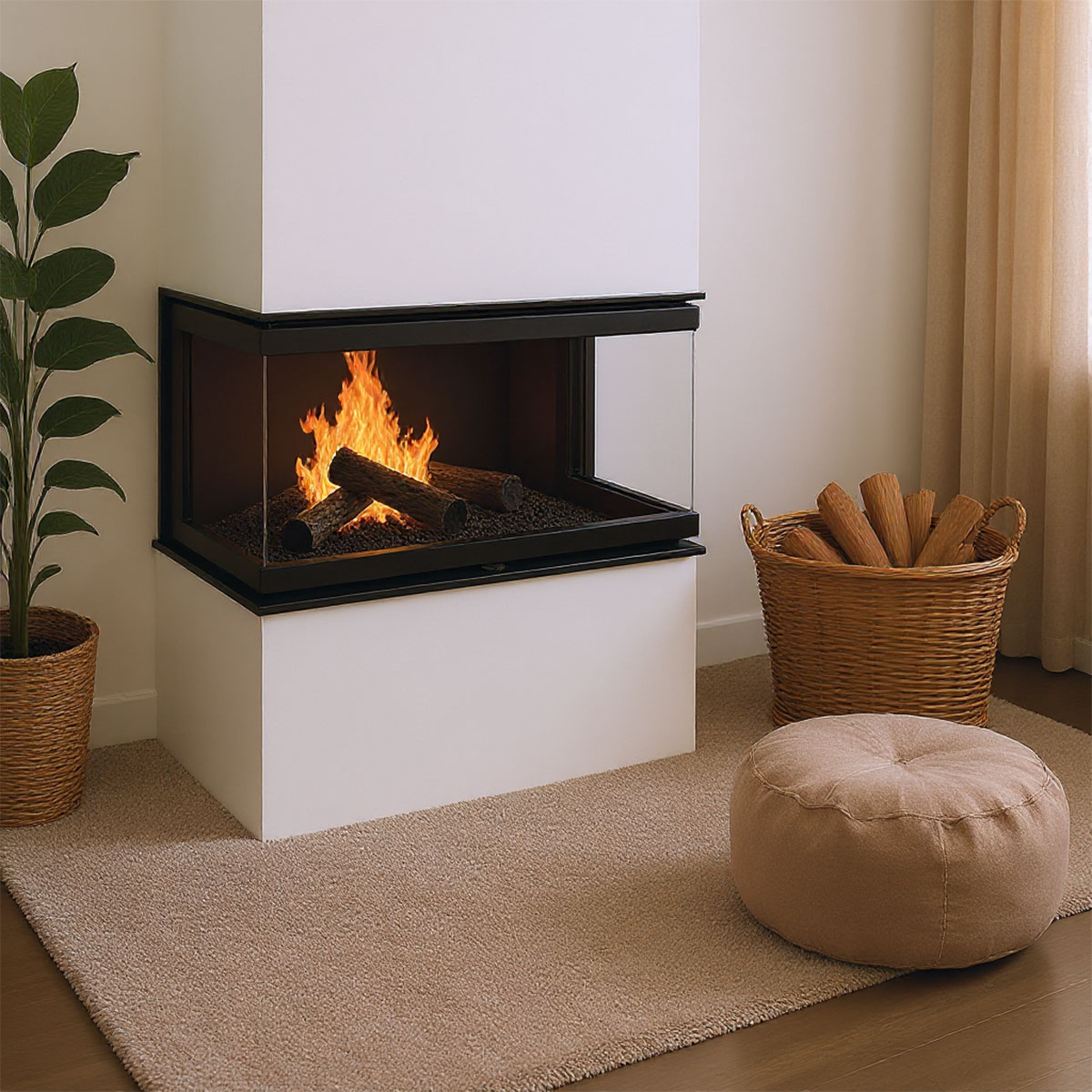

  • In-wall Dorako Eco Max 7 Three open sided glass view wood burning fireplace with visible flame in a modern living room setting with a plant, basket of bread, and pouf.
  • In-wall Dorako Eco Max 7 Three sided wood burning fireplace with visible flame in a modern living room with bookshelf and woodpile to the side
  • Angle View of Dorako Eco Max 7 with three sided transparent glass wood burning stove on a white background with 691 mm Width in size, 50cm trunk length and open space for chimney installation
  • Front view of Dorako Eco Max 7 3F wood burning stove on a white background with 691 mm Width in size, 50cm trunk length, three sided transparent glass and open space for chimney insallation.
  • Colored Air flow signature of Dorako Eco Max 7 3F wood stove on a white background with 691 mm Width in size, 50cm trunk length and transparent glass
  • Handing warming in front of Dorako Eco Max 7 3F wood stove on a white background with 691 mm Width in size, 50cm trunk length and transparent glass
  • Angle view of In-wall Dorako Eco Max 7 3F wood burning stove with three sided transparent glass view. large opening and fishbowl style Modern Scandinavian Fireplace
  • Cap for your wood burning fireplace also included

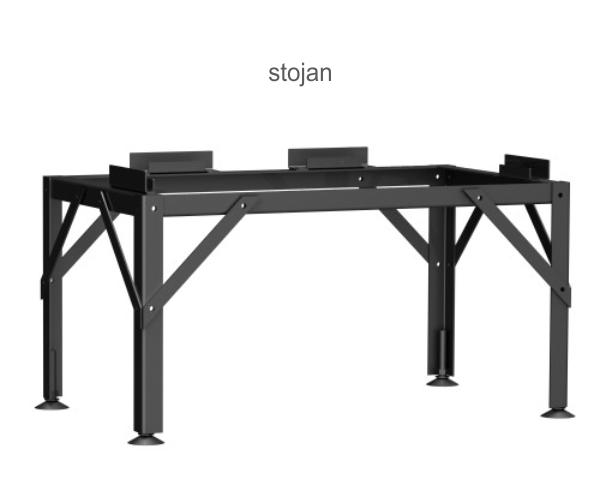

  • The stand for your Fireplace that you will then be able to frame and enclose with what you choose
1 10

Dorako ECO MAX 7 3F 3 Sided Glass Wood Stove: Handmade Wall-Insert Glass Fireplace

Dorako ECO MAX 7 3F 3 Sided Glass Wood Stove: Handmade Wall-Insert Glass Fireplace

$4,299.00 USD
$4,299.00 USD
Sale Sold out
Shipping calculated at checkout.
Send us a message

Dorako ECO MAX 7 3F Wood Stove- Black Wall Insert Glass Fireplace

KFD Dorako ECO MAX 7 Three Sided Fireplace is Made to Order - Available in Basic and Standard

Dorako Eco Max 7 3 sided Standard Wood Stove With flames and Log Inside on a white background

The KFD 3 Sided Wide Angle Wood Burning Fireplace can be built to any corner choice (left or Right)  This is a Highly efficient fireplace at 82.5% it rates higher than most every other wood fireplace on the market

Comes with the metal stand so you can enclose this fireplace what the surround of your choice, brick, stone, steel you choose your hearth materials. this frame allows you to design it.

Height 28" Width 27.2" Depth 18.2"

TECHNICAL DATA

- Energy efficiency class: A+

- Direct thermal power (nominal power): 11.5 kW

- Heating power range: 7.0 - 16.0 kW

- Energy efficiency index: 110.6 EEI

- Energy efficiency at nominal thermal power: 82.5%

- Seasonal energy efficiency for space heating: 73.5%

- CO emissions at 13% O2: 0.09%, 1162 mg/Nm3

- Dust emission at 13% O2: 19 mg/Nm3

- OGC at 13% O2: 51 mg/Nm3

- NOX emissions at 13% O2: 145 mg/Nm3

- Mass flow rate of combustion gases: 9.75 g/s

- Average temperature of the fumes at the flue outlet: 235°C

- Minimum chimney draft: 12 Pa

DIMENSIONS AND WEIGHT:

- Overall dimensions (H x W x D): 28.0″ × 27.2″ × 18.2″ (BASIC)

- Overall dimensions (H x W x D): 28.4″ × 29.5″ × 18.1″ (STANDARD)

- Front dimensions (H x W x D):  27.2″ × 20.8″ (BASIC)

- Front dimensions (H x W x D): 29.5″ × 19.3″ (STANDARD)

- Side panel dimensions (H x W): 16.0″ × 20.9″ (BASIC)

- Side panel dimensions (H x W): 15.0″ × 17.5″ (STANDARD)

- Front glass dimensions (H x W): 25.6″ × 13.5″ (BASIC)

- Front glass dimensions (H x W): 29.3″ × 15.5″ (STANDARD)

- Side window dimensions (H x W x D): 12.2″ × 13.5″ (BASIC)

- Side windows dimensions (H x W): 13.7″ × 15.5″ (STANDARD)

- Maximum trunk length: 50 cm

- Diameter of internal/external flue: 7.1″ / 7.9″

- Air inlet diameter: 3.9″

- Weight: 115 kg (BASIC)

- Weight: 130 kg (STANDARD)

ADDITIONAL INFORMATIONS:

Specific precautions: They must be installed, used, and maintained in accordance with the installation and operation manual.

- For continuous combustion: YES

- Fuel type: Logs with a moisture content ≤ 20%

- Minimum cross-sectional area of the supply air network: 700 cm3

- Minimum cross-selection of overhead outgoing networks: 980 cm3

- Ashtray: YES

- Suitable device for passive and low-energy homes: NO

- Opening of the side door

- Possibility of fire with the door open: NO

- A special wide deflector in the hearth for longer circulation of gases thereby increasing heating efficiency.

- Easy cleaning of the glass thanks to the possibility of opening the side glazing

- The possibility of connection to an external air supply of 100 mm, the flange must be purchased additionally

- Option to purchase a stand

- Warranty: 5 years

- Made in Europe

ADVANTAGES OF ECO MAX 7 3F

  1. SOLID AND DURABILITY
    Materials of highest quality are used for the robust construction, to ensure safety and reliability for many years of burning.
  2. EFFICIENCY AND ECOLOGY
    Materials of highest quality are used for the robust construction, to ensure safety and reliability for many years of burning.
  3. HIGHER HEATING EFFICIENCY
    Deflector forces a longer circulation of combustion gases inside the hearth. Thanks to this, the efficiency is higher and combustion is more ecological.
  4. TIGHTNESS, AESTHETICS AND COMFORT
    Door is blocked by a precise lock, which closes the door tightly. The products are equipped (depending on the model) with a “cold handle” or gloves, which makes the operation comfortable and secure.
  5. SAFETY AND EXCELLENT FIRE VIEW
    All glasses are made of transparent ceramic, with thermal resistance up to 800°C and thermal shocks. Thanks to combination of pyrolisis effect and proper air circulation the glass stays clear for longer.
  6. EASY MAINTENANCE
    All parts can be dismounted from the inside of the hearth. In consequence it allows easy maintenance, with no need to dismantle the stove.
  7. COMFORT OF USE
    Stoves are equipped with ash pan for easy ash removal




Would you prefer a 2 Sided Fireplace? we have a corner fireplace as well- In Wall Click here for the KFD ECO MAX 7 L/R Standard

There is also the Basic - smaller version of the two sided Corner Fireplace Click here for the Ecomax L/R Basic

Need a custom fireplace? we can have just anything made for you, Or you need help with your Purchase? we are one click away, message us and we will be ready to assist you.
KFD product mini-catalogue - wood fired fireplace inserts and stoves
