Dorako ECO MAX 7 3-Sided Glass Wood Stove - Handmade Fireplace Insert

Dorako ECO MAX 7 3-Sided Glass Wood Stove - Handmade Fireplace Insert Is Available and ready to ship.

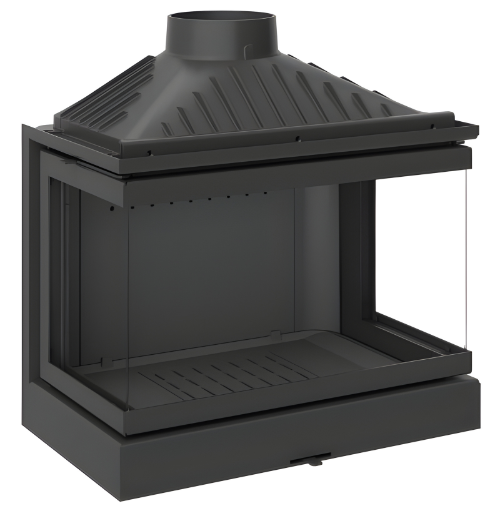

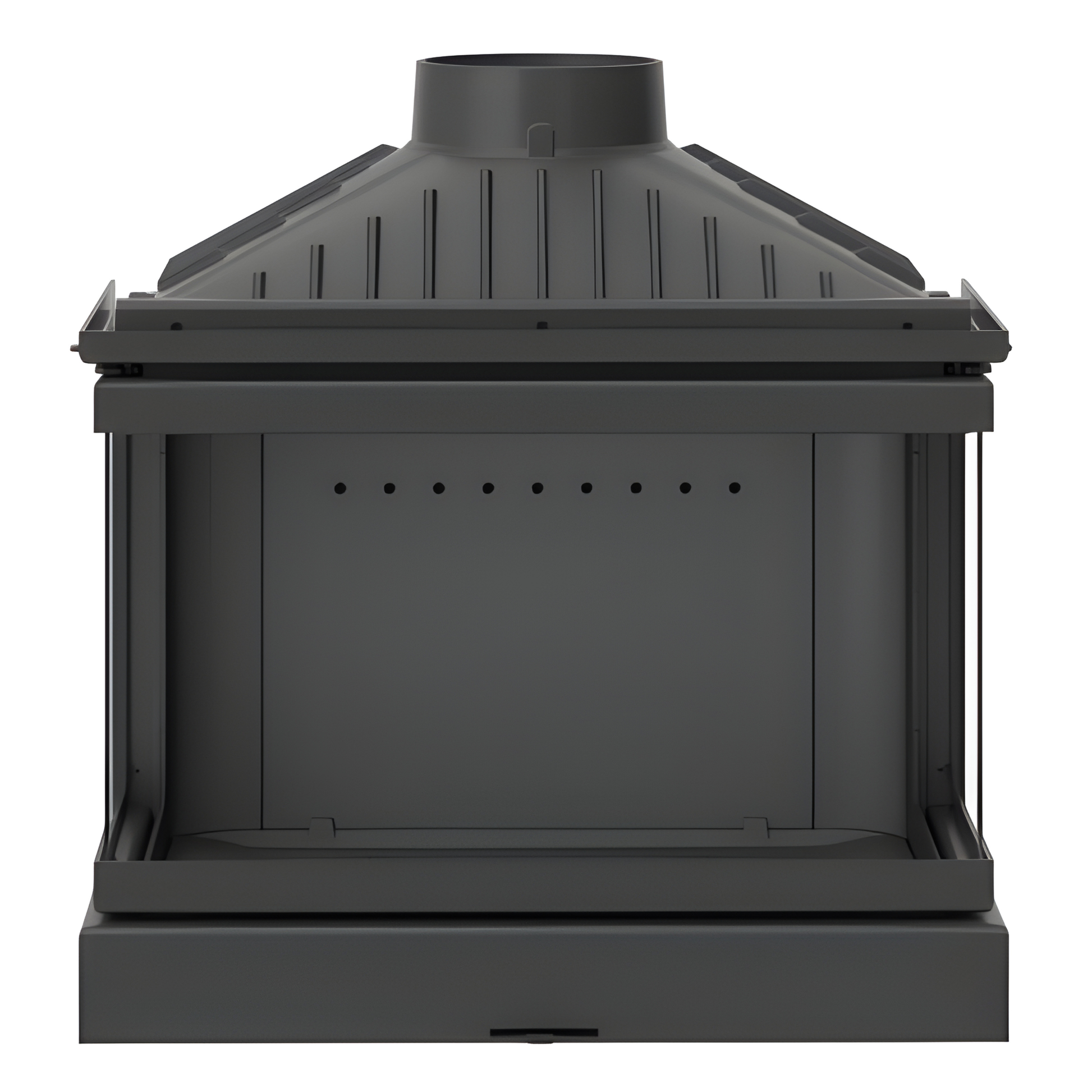

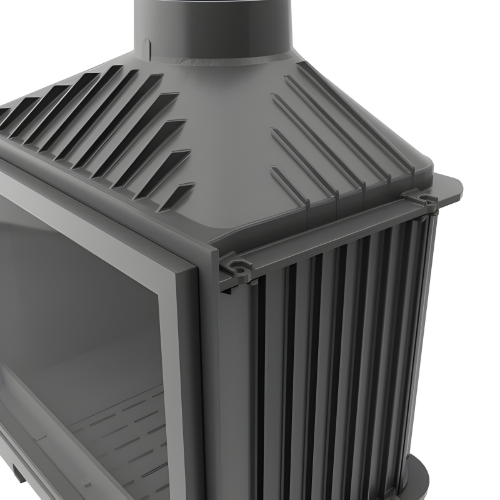

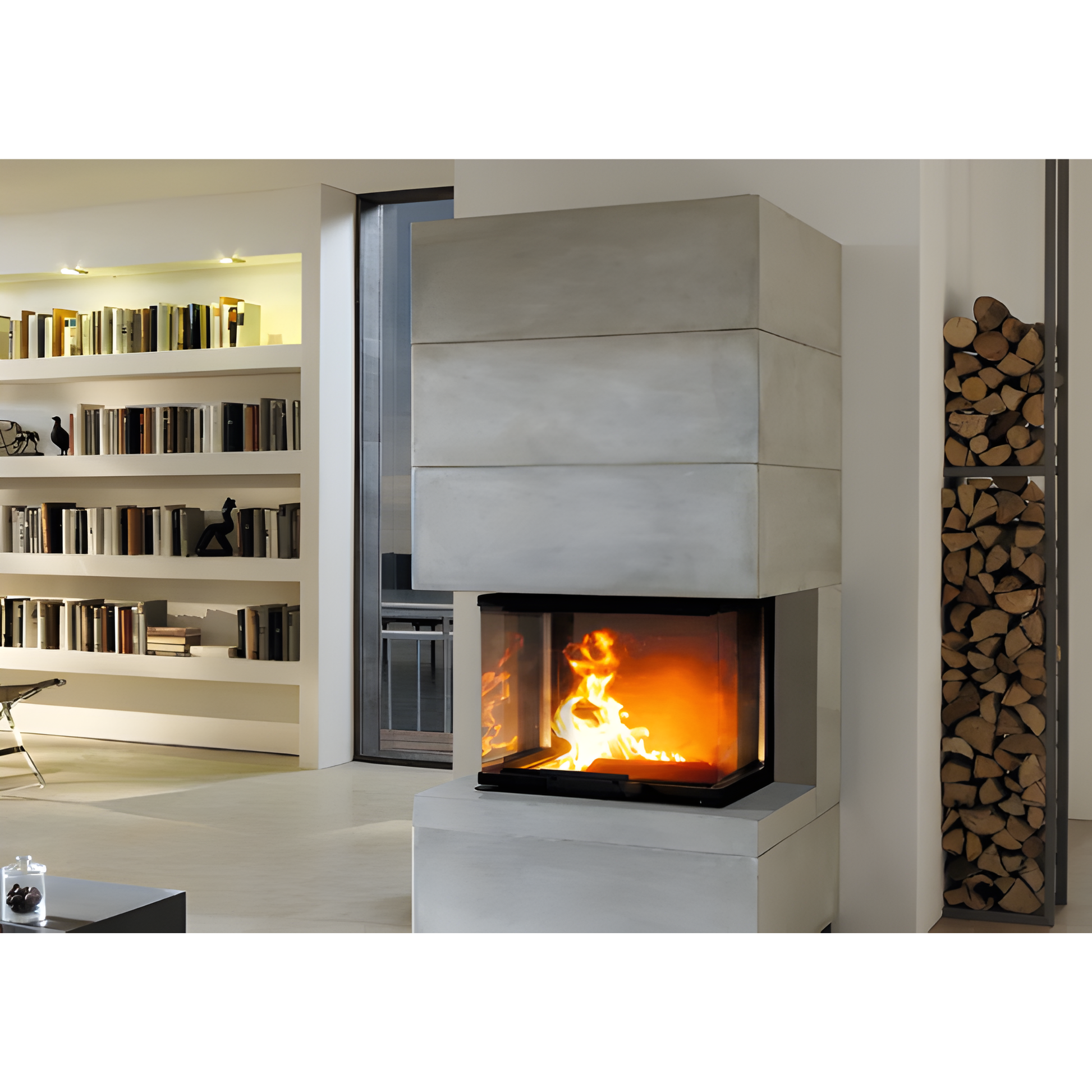

Cast-iron fireplace inserts with three-sided glazing and right side-opening door.

The KFD In-Wall Built in three sided fireplace is one of the most efficient (82.5% Efficiency)  Cast Iron Stoves you can buy. Hand Made in Poland by KFD and made to order. Smokey Mountain will be being helping with any other questions you may have.

Comes with the metal stand so you can enclose this fireplace what the surround of your choice, brick, stone, steel you choose your hearth materials. this frame allows you to design it.

DETAILS:

• Nominal power 11.5 kW
• Dimensions:  h: 28.35" w: 29.53" d: 17.91"
• Adjustable power 7 - 16 kW
• Heating capacity 230 m3
• Efficiency 82.5%

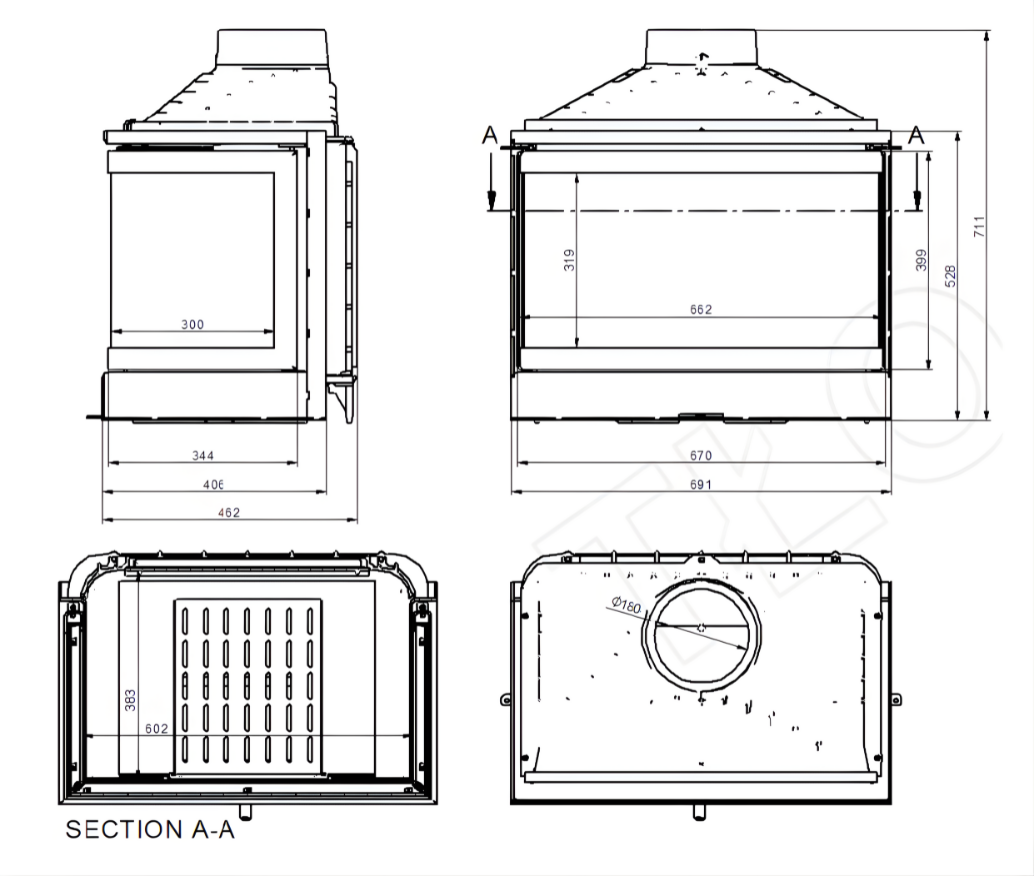

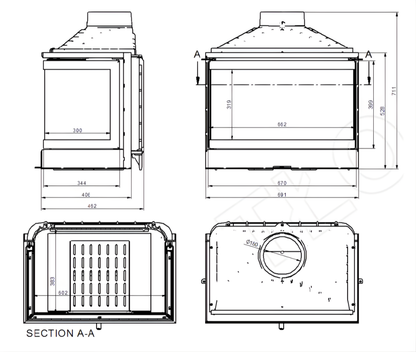

• Dimensions (H x W x D): 720 x 750 x 455 mm
• Flue diameter: 180 mm internal / 200 mm external
• Connection of the upper flue Flue pipe Size is 6"
• Air Damper Included
• Fuel: wood
• Maximum length of logs 50 cm
• Weight 115 kg
• Two-stage combustion
• Double cast iron hearth plates
• Removable cast iron grate and ashtray
• Cold door handle

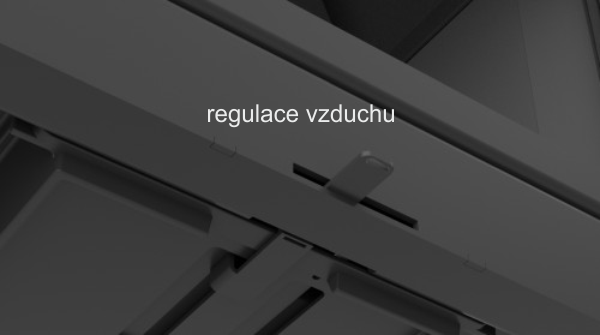

• Regulation of primary and secondary air
• Continuous burning: yes
• A special wide deflector in the hearth for longer circulation of gases thereby increasing heating efficiency.
• Minimum draft of the chimney 12 Pa
• Easy cleaning of the glass thanks to the possibility of opening the side glazing
• The possibility of connection to an external air supply of 100 mm, the flange must be purchased additionally
• Option to purchase a stand

ADVANTAGES OF ECO MAX 7 3F

• SOLID AND DURABILITY
  Materials of highest quality are used for the robust construction, to ensure safety and reliability for many years of burning.
• EFFICIENCY AND ECOLOGY
  Materials of highest quality are used for the robust construction, to ensure safety and reliability for many years of burning.

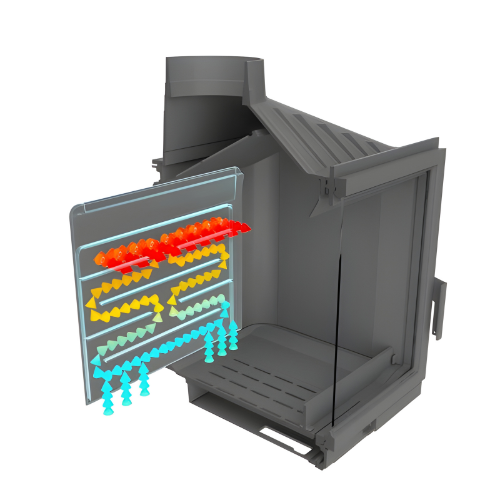

• HIGHER HEATING EFFICIENCY
  Deflector forces a longer circulation of combustion gases inside the hearth. Thanks to this, the efficiency is higher and combustion is more ecological.
• TIGHTNESS, AESTHETICS AND COMFORT
  Door is blocked by a precise lock, which closes the door tightly. The products are equipped (depending on the model) with a “cold handle” or gloves, which makes the operation comfortable and secure.
• SAFETY AND EXCELLENT FIRE VIEW
  All glasses are made of transparent ceramic, with thermal resistance up to 800°C and thermal shocks. Thanks to combination of pyrolisis effect and proper air circulation the glass stays clear for longer.
• EASY MAINTENANCE
  All parts can be dismounted from the inside of the hearth. In consequence it allows easy maintenance, with no need to dismantle the stove.
• COMFORT OF USE
  Stoves are equipped with ash pan for easy ash removal
