Vita Callista | Floating Indoor Fireplace | Wood Burning & Vapor-Fire | Single, Double & Triple Sided

Modern Floating/Suspended VITA CALLISTA Vapor-Fire and Wood Burning Indoor Gas Fireplace.

Luxury Open-Fire View Modern Hanging Fireplace; Custom design Fireplace CALLISTA Available as Single-Sided, Double-Sided and Triple-Sided. Suitable For Commercial and Residential Use.

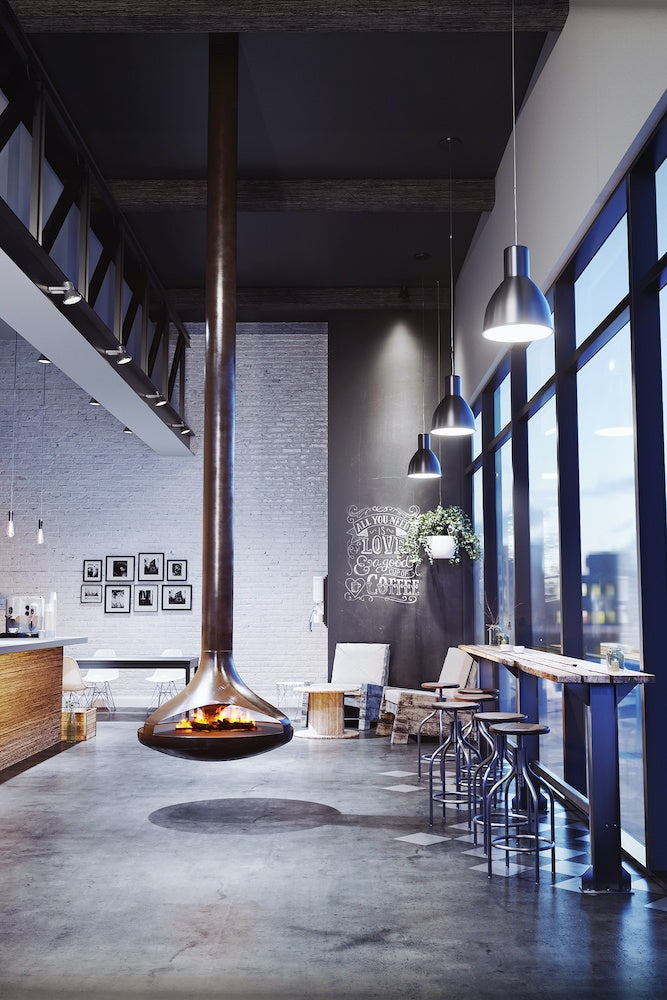

Luxury Hanging Single-Sided CALLISTA Vapor-Fire Fireplace.

The VITA Fireplaces CALLISTA | Suspended Fireplace offers a modern design for the perfect gathering space. The traditional style and curved shape are sure to draw attention, while the augmented reality flame effect produced by the Vapor-Fire technology provides the ambiance of a real fire using regular tap water as its fuel source. The 100% operating efficiency of our VITA Fireplaces provides a green alternative for sustainable building requirements, along with optimizing space within the specified environment.

CALLISTA VAPOR-FIRE SUSPENDED FIREPLACE FEATURES

• Vapor-Fire burner technology
• Realistic flame without heat
• No chimney venting requirements
• Safe to the touch Fueled by regular tap water (softened/filtered water if required)
• 120 Volt 15 Amp-GFCI
• All fireplaces factory Flat Black finish
• Custom Client finishes are available by request. Sample required.
• Heat available, most models
• Dedicated wall switch required for operation
• Custom anchor options available.

WATER VAPOR-FIRE OPTIONS

OPTION 1:

• Plumbed-In to main source water line, ½”
• reduced to ¼” factory set connection.


OPTION 2:

• Removable 1L container for manual fill
• approx. 8-10 hour burn time


Recommended: Leak detection sensor for potential leak management.

DIMENSION:

All dimensions are in Inches. Exact measurements may vary ±½”. Shown with standard 9 ft. ceiling application.

Dimensions	Single-Sided	Double-Sided	Triple-Sided
Fireplace body	200 lbs	190 lbs	180 lbs
Flue pipe	11 lbs per foot	11 lbs per foot	11 lbs per foot
Flat Anchor	77 lbs	77 lbs	77 lbs



CALLISTA WOOD-BURNING FLOATING FIREPLACE FEATURES:

• For use with Solid wood fuel only.
• UL/ULC Approved Stainless Steel Chimney System.
• All Standard fireplaces are painted in a High heat factory Flat Black finish.
• All dimensions are in inches.
• Exact measurements may vary ± ¼”.
• Custom integral grate assembly.
• Custom removable spark protection screen.
• Adjustable flue draft damper control.
• The height of the chimney vent must extend a minimum of 3 ft. above the roof exit a minimum of 2ft. above any obstruction within 10ft. radius.
• A minimum of 15ft. from fireplace opening to the top of chimney is required for stronger drafts.
• Optional decorative chimney cover available at an add’l cost.
• Custom anchor options available at an add’l cost.

CALLISTA CLEARANCE COMBUSTIBLE (WOOD BURNING)

• A minimum of 36” from the combustible materials and/or walls around the fireplace open side and 18” around closed side is required. 36” all around if a rotation device is used
• 2” around the chimney chimney system 18” around flue pipe is required
• A minimum of 18” of non-combustible floor material from the fireplace opening and 8” around the rest of the fireplace close side including the portion underneath is required.

DIMENSIONS:

Dimension	Single-Sided
Flat Anchor	85 lbs
Flue Pipe	60 lbs
Fireplace Body	200 lbs
Total Standard Fireplace	345 lbs

RECOMMENDED WOOD FEATURES

• Use dry, natural, seasoned wood with an acceptable moisture content below 20%.
• The wood logs shall be split in quarters and 16"-20" in length with 6-8 pieces at a time.
• It is recommended to buy the moisture meter to test the moisture in the firewood every time. If the moisture content is more than 20% DO NOT USE as it may result in smouldering and will cause too much of smoke.
• Please refer to the attached GUIDE TO RESIDENTIAL WOOD HEATING for more information and safety practices in operating this fireplace.



The fireplace has been tested and certified to meet the standards of UL 737- Standard for Fireplace Stoves. CAN/ULC -S610 - Standard for Factory-Built Fireplace Systems. Certified Under – ICC ES PMG-1574
